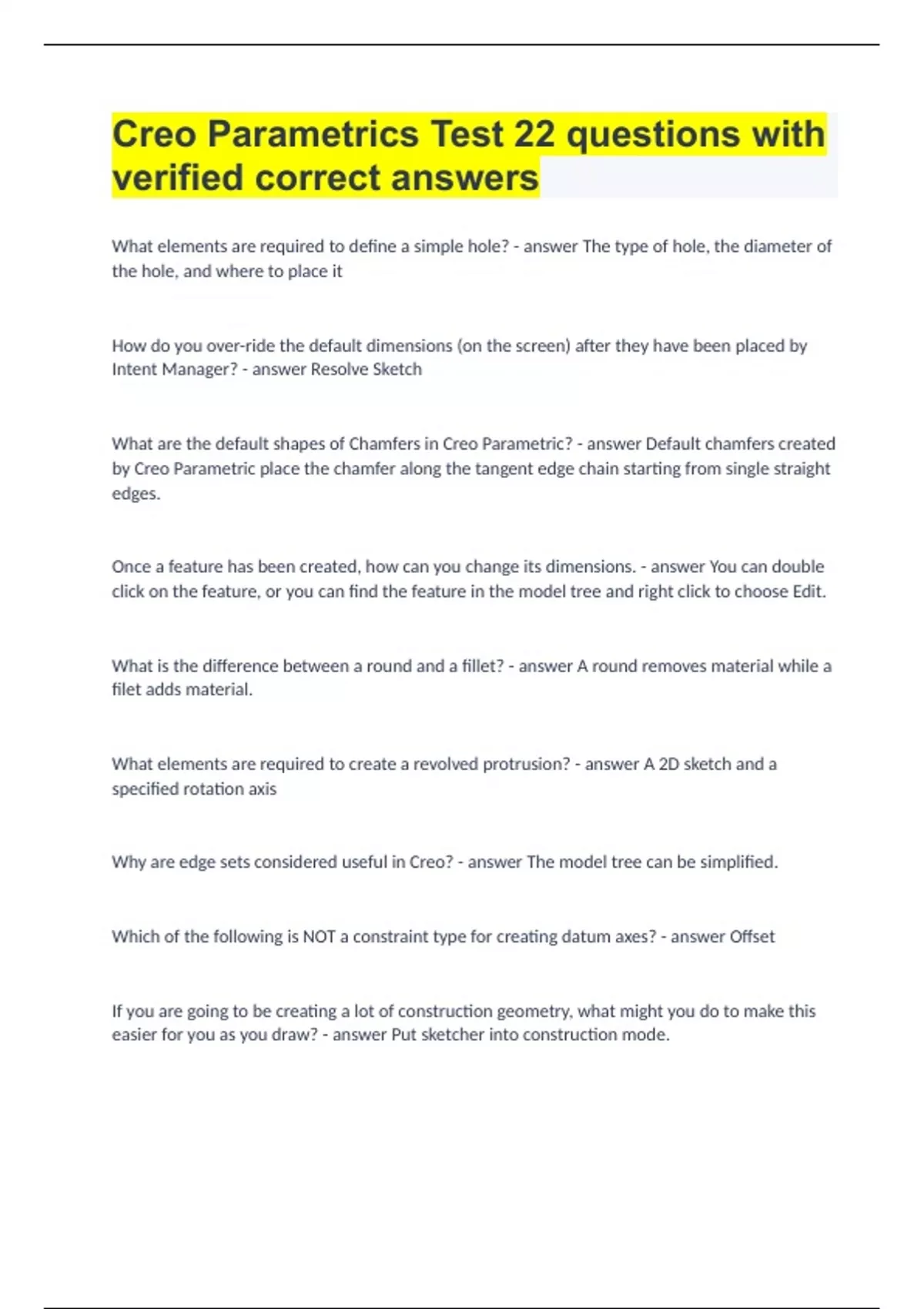

Creo Parametrics Test |22 questions with verified correct answers

What elements are required to define a simple hole? The type of hole, the diameter of the hole, and where to place it How do you over-ride the default dimensions (on the screen) after they have been placed by Intent Manager? Resolve Sketch What are the default shapes of Chamfers in Creo Parametric? Default chamfers created by Creo Parametric place the chamfer along the tangent edge chain starting from single straight edges. Once a feature has been created, how can you change its dimensions. You can double click on the feature, or you can find the feature in the model tree and right click to choose Edit. What is the difference between a round and a fillet? A round removes material while a filet adds material. What elements are required to create a revolved protrusion? A 2D sketch and a specified rotation axis Why are edge sets considered useful in Creo? The model tree can be simplified. Which of the following is NOT a constraint type for creating datum axes? Offset If you are going to be creating a lot of construction geometry, what might you do to make this easier for you as you draw? Put sketcher into construction mode. When constructing many datum planes and axes to air your part drawings, why would you want to click the binocular 'Find' button on the bottom right of Creo? What does this allow you to do? Allows you to find features for easy selection during drawing What is the purpose of datum planes? Datum planes are used as reference points/planes where references do not exist. What are the three primary goals in creating models? ensure each model is simple, flexible, and robust What are the two colors that datum planes can have? Brown and Black What do we call an equation that computes a dimensional value? A relation What mouse buttons are used to pan, spin, and resize an object? Shift+MMB, MMB, and Ctrl+MMB What is the purpose of the sketching reference? The sketching reference plane is the plane where the sketch is drawn when Sketcher is picked How do you save a part? Quick Access toolbar, pull-down menu, and Ctrl+S How do you create a weak dimension? You cannot How do you create a strong dimension? Select a weak dimension and make it strong using RMB pop-up menu, or Create a dimension from scratch by identifying entities in the sketch and placing a new dimension on the sketch, or double click on the dimension and enter a strong dimension What are the two types of patterns that can be made in Creo Parametric? Those on a sketching plane and a sketching reference plane The Copy/Paste or Paste Special feature in Creo is similar to Windows-like Copy/Paste command structure True When creating a radial pattern using a make datum, what is the most important item to consider? There are no references, alignments, or dimensions to entities in the part other than the make datum, the axis of the radial pattern, or other asymmetric features.
