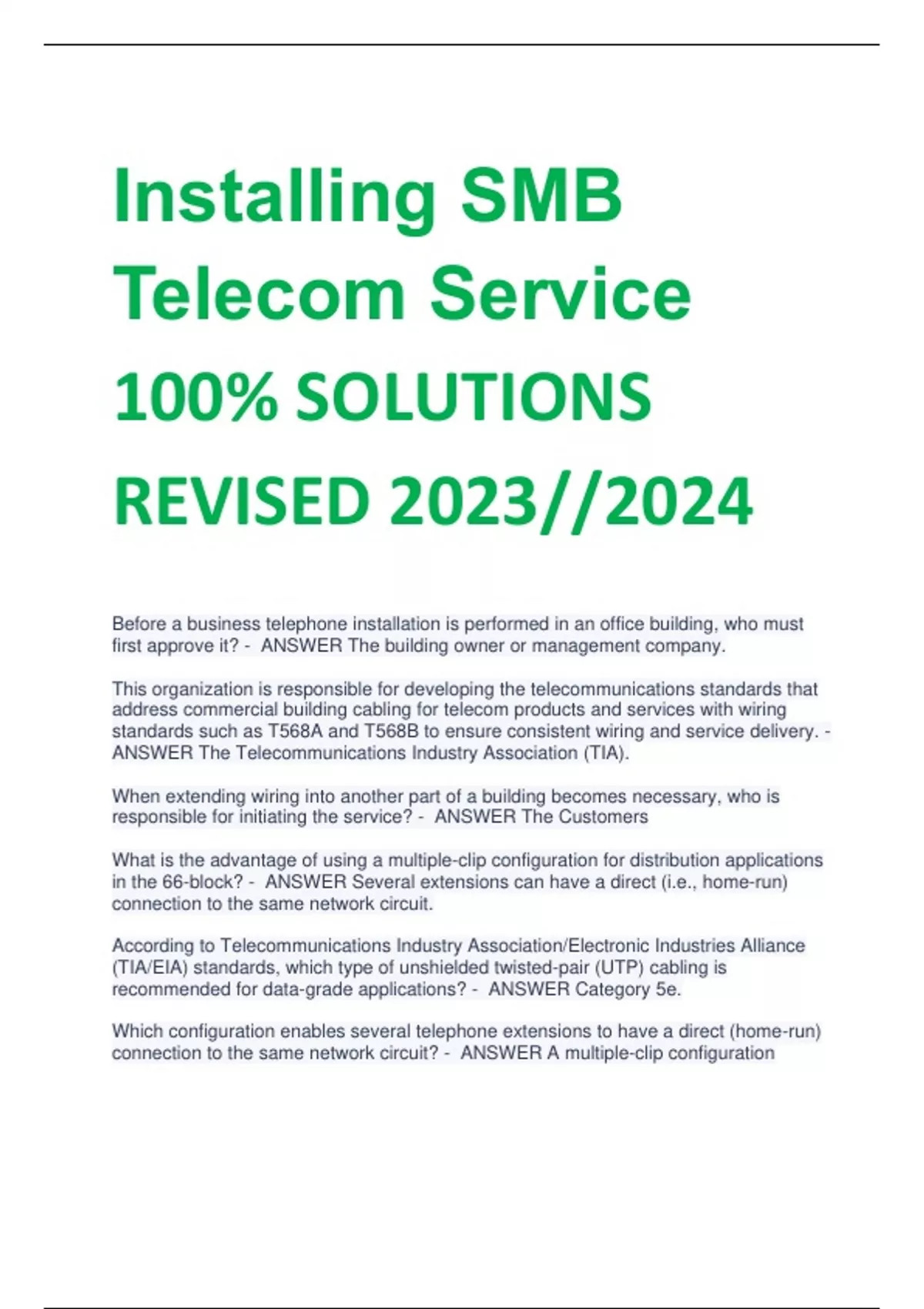

LATEST Installing SMB Telecom Service 100% SOLUTIONS REVISED 2023//2024

Before a business telephone installation is performed in an office building, who must first approve it? - ANSWER The building owner or management company. This organization is responsible for developing the telecommunications standards that address commercial building cabling for telecom products and services with wiring standards such as T568A and T568B to ensure consistent wiring and service delivery. - ANSWER The Telecommunications Industry Association (TIA). When extending wiring into another part of a building becomes necessary, who is responsible for initiating the service? - ANSWER The Customers What is the advantage of using a multiple-clip configuration for distribution applications in the 66-block? - ANSWER Several extensions can have a direct (i.e., home-run) connection to the same network circuit. According to Telecommunications Industry Association/Electronic Industries Alliance (TIA/EIA) standards, which type of unshielded twisted-pair (UTP) cabling is recommended for data-grade applications? - ANSWER Category 5e. Which configuration enables several telephone extensions to have a direct (home-run) connection to the same network circuit? - ANSWER A multiple-clip configuration If it is necessary to run cables from one intermediate distribution frame (IDF) to another, what type of connection block is used? - ANSWER M66-150. Grounding and protection are required in two places. One is in the equipment room or telecommunications closet. Where is the other? - ANSWER Building entrance What organization is responsible for developing telecommunications standards that address commercial building cabling for telecom products and services? - ANSWER Telecommunications Industry Association/Electronic Industries Alliance (TIA/EIA). Who owns and is responsible for the wiring between the small and medium business (SMB) customer's cross-connect block and the cross-connect block installed by the cable operator? - ANSWER The customer. When a circuit is cross-connected to a customer's equipment or telephones, it is tagged for identification. Where else are telephone numbers and line positions on the embedded multimedia terminal adapter (EMTA) noted? - ANSWER On the inside cover of the orange 66-block Why is the T568A wiring configuration recommended over the T568B wiring configuration? - ANSWER The T568A configuration is backward compatible with Universal Services Order Codes (USOC) RJ-XX wiring. In a T568A wiring scheme for a four-pair connection, which pair uses white/brown for tip and brown/white for ring? - ANSWER Pair 4 What is a main distribution frame? - ANSWER A wiring arrangement that connects outside and internal telephone lines What is the maximum pulling tension for a four-pair unshielded twisted-pair (UTP) CAT- 5e cable? - ANSWER 25 lbs When running unshielded twisted-pair (UTP) cable, it is critical that - ANSWER The minimum bend radius be maintained to no less than 4 times the outside diameter. If a 66-block has a green cover, what does that designate? - ANSWER Network connections. When installing a 66-block, which mounting guidelines should be followed? - ANSWER A mount-support bracket (also called a stand-off bracket) should be installed to help provide needed clearances. Which pins are often not installed in an RJ-11 jack? - ANSWER Pins 1 and 6. What code covers the installation of station jacks? - ANSWER Universal Service Order Codes (USOC). Which tool is used to force down a twisted pair conductor in an insulation displacement connection (IDC) termination? - ANSWER Punch Down tool When stripping unshielded twisted-pair (UTP) cable, what is one factor that must be taken into account to ensure proper stripping? - ANSWER Jacket thickness varies due to flame rating and manufacturer. What tool should be used to test the line cords that connect the customer premises equipment (CPE) to modular data and telephone jacks? - ANSWER An inside wire cable tester. One of the functions of the IW (inside wire) cable tester is to: - ANSWER Test line cords that connect the customer premises equipment (CPE) to modular data and telephone jacks When using a twisted-pair cable tester, a green condition means - ANSWER Continuity exists throughout the circuit pair without faults. A wiremap field cable tester can include a time domain reflectometer (TDR) to determine the distance to any breaks, shorts, or missed wires. In what situations can the tester be used? - ANSWER It is used to certify structured wiring in commercial buildings and can be used to verify inside wire (IW) in residential settings. Which of the following best describes how a wiremap tester checks pin-to-pin continuity? - ANSWER A wiremap includes one unit that injects a signal at one end of the cable and a second unit that checks the signal at the other end. What causes unshielded twisted-pair (UTP) cable to come in a variety of thicknesses? - ANSWER UTP jacket thickness varies due to flame rating and manufacturer. The terminator tool is used to: - ANSWER Give new service or take away service to a customer. Which tool is used to tighten "F" connectors securely? - ANSWER 7/16-inch wrench Which of the following features are normally part of a PBX system? - ANSWER Call forwarding, call waiting, speed dialing. Which key system architecture enables individual telephone sets that do not require any single shared-control unit? - ANSWER Independent key sets Which type of telephone system allows a company to have a single phone number reach all employees, even though they reside in different geographical locations? - ANSWER Hosted PBX
