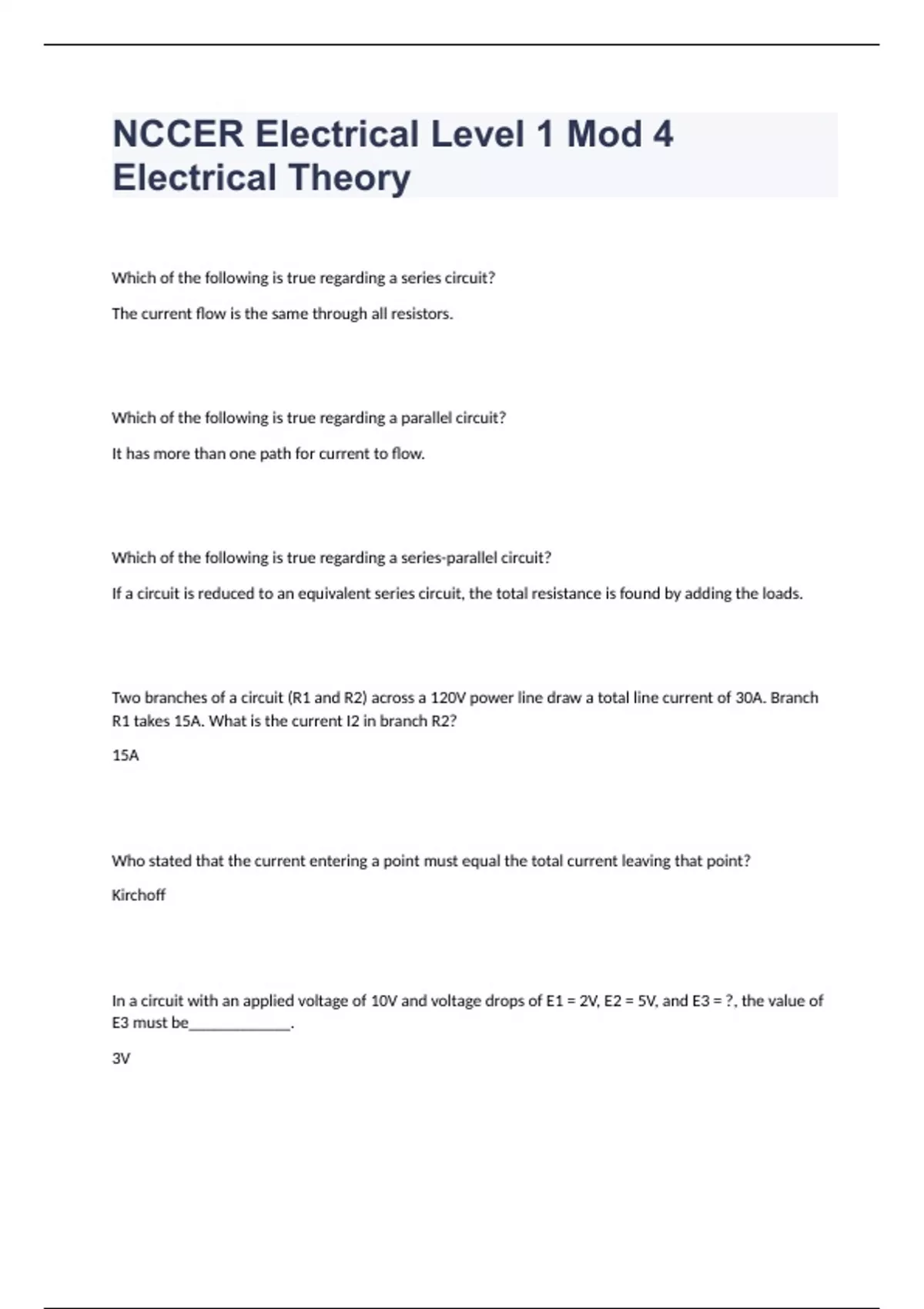

NCCER Electrical Level 1 Mod 4 Electrical Theory Questions Correctly Answered 2024.
NCCER Electrical Level 1 Mod 4 Electrical Theory Questions Correctly Answered 2024. Which of the following is true regarding a series circuit? The current flow is the same through all resistors. Which of the following is true regarding a parallel circuit? It has more than one path for current to flow. Which of the following is true regarding a series-parallel circuit? If a circuit is reduced to an equivalent series circuit, the total resistance is found by adding the loads. Two branches of a circuit (R1 and R2) across a 120V power line draw a total line current of 30A. Branch R1 takes 15A. What is the current I2 in branch R2? 15A Who stated that the current entering a point must equal the total current leaving that point? Kirchoff In a circuit with an applied voltage of 10V and voltage drops of E1 = 2V, E2 = 5V, and E3 = ?, the value of E3 must be____________. 3V
