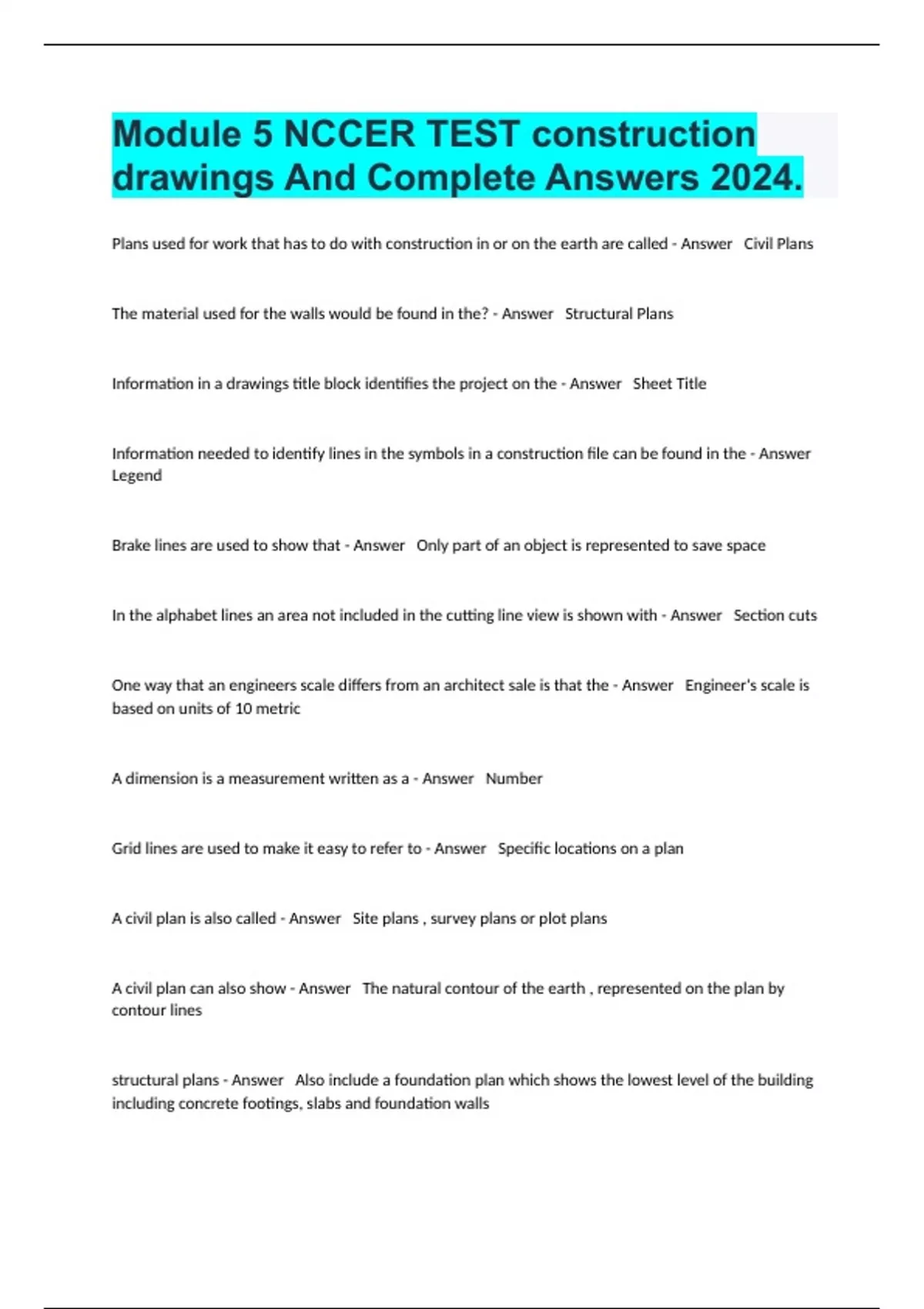

Module 5 NCCER TEST construction drawings And Complete Answers 2024.

Plans used for work that has to do with construction in or on the earth are called - Answer Civil Plans The material used for the walls would be found in the? - Answer Structural Plans Information in a drawings title block identifies the project on the - Answer Sheet Title Information needed to identify lines in the symbols in a construction file can be found in the - Answer Legend Brake lines are used to show that - Answer Only part of an object is represented to save space In the alphabet lines an area not included in the cutting line view is shown with - Answer Section cuts One way that an engineers scale differs from an architect sale is that the - Answer Engineer's scale is based on units of 10 metric A dimension is a measurement written as a - Answer Number Grid lines are used to make it easy to refer to - Answer Specific locations on a plan A civil plan is also called - Answer Site plans , survey plans or plot plans A civil plan can also show - Answer The natural contour of the earth , represented on the plan by contour lines structural plans - Answer Also include a foundation plan which shows the lowest level of the building including concrete footings, slabs and foundation walls
