Millwright Level 3 Pneumatics Questions and Answers 100% Pass

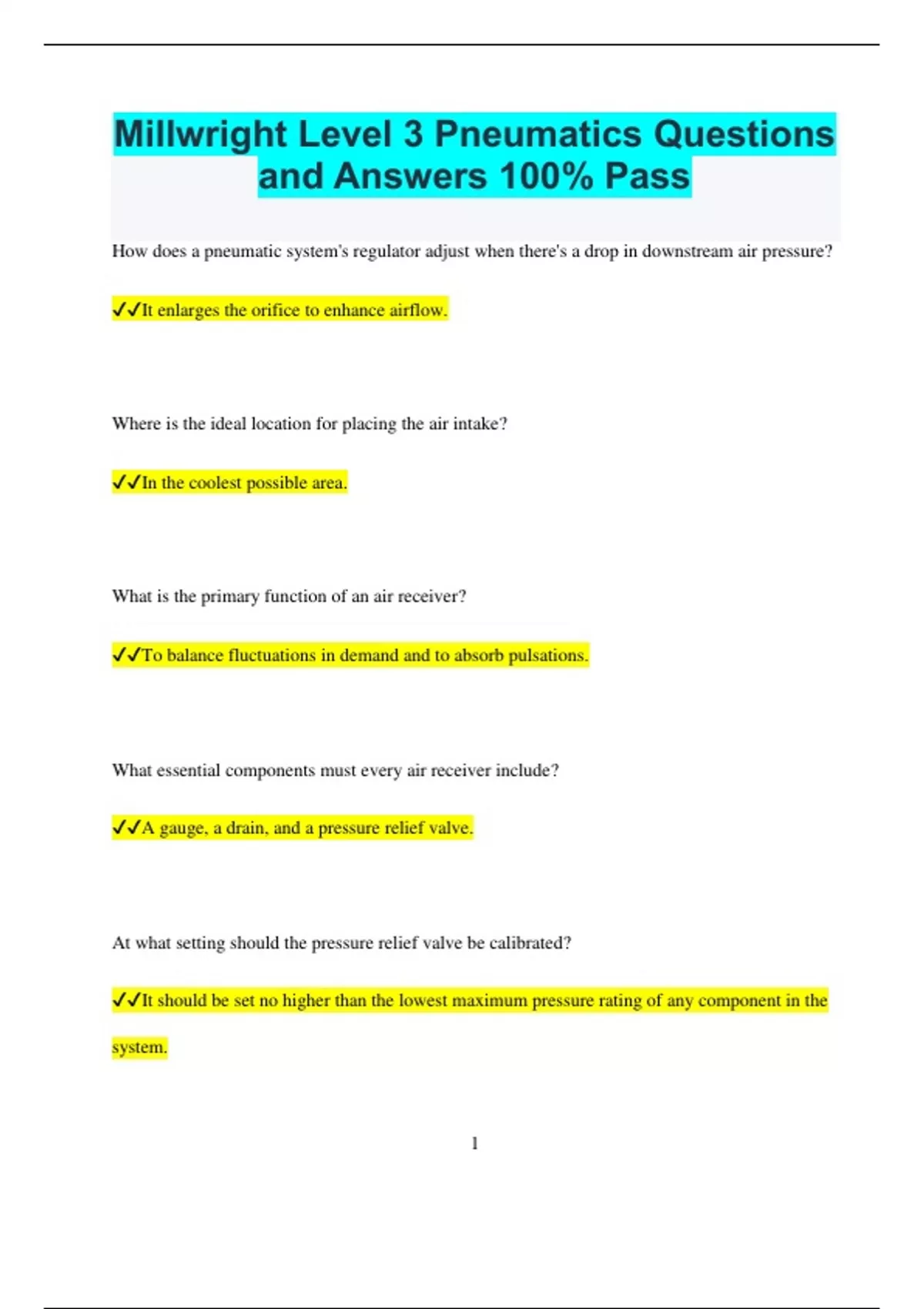

Millwright Level 3 Pneumatics Questions and Answers 100% Pass How does a pneumatic system's regulator adjust when there's a drop in downstream air pressure? It enlarges the orifice to enhance airflow. Where is the ideal location for placing the air intake? In the coolest possible area. What is the primary function of an air receiver? To balance fluctuations in demand and to absorb pulsations. What essential components must every air receiver include? A gauge, a drain, and a pressure relief valve. At what setting should the pressure relief valve be calibrated? It should be set no higher than the lowest maximum pressure rating of any component in the system. 2 How should safety relief valves be installed, and for what reason? They should be mounted vertically, often on top, to avoid obstruction by dirt and sludge. What are the three prevalent types of pipe systems used? The grid (dead-end) system, decentralized system, and loop system. Which piping system is considered the most effective? The loop system. Explain the Grid (dead-end) piping system. This straightforward system uses a single compressor and a large diameter supply line that reduces in size. A drawback is that sections at the end of the circuit might experience air shortages if upstream demand is high. Describe the decentralized piping system. This system features multiple compressors, each with its own grid. These grids may or may not be connected. The advantage is that each compressor is positioned closer to its usage point, reducing pressure drop and ensuring a more consistent supply pressure. 3 What characterizes the loop piping system? It involves two or more compressors
