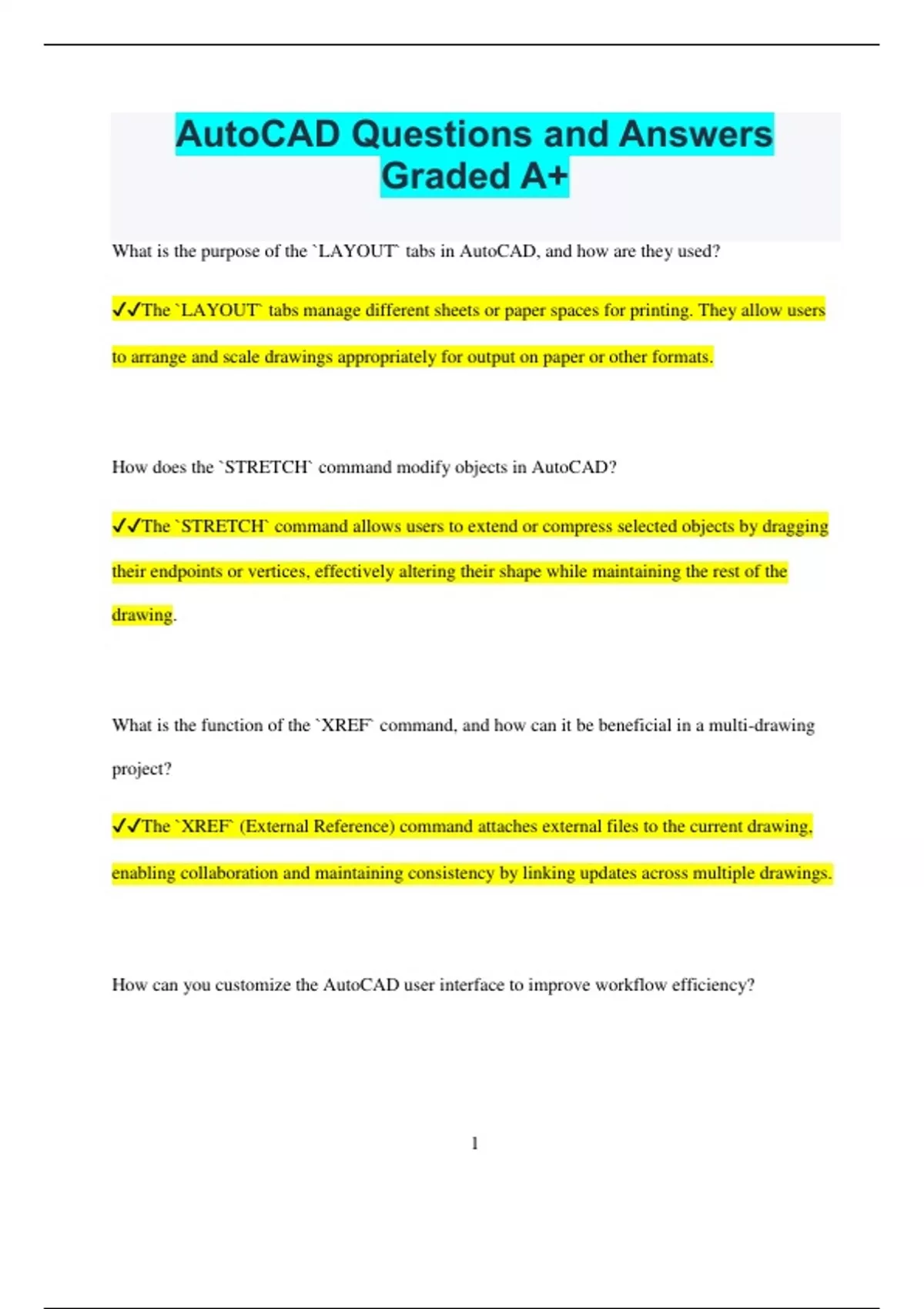

AutoCAD Questions and Answers
Graded A+
What is the purpose of the `LAYOUT` tabs in AutoCAD, and how are they used?


✔✔The `LAYOUT` tabs manage different sheets or paper spaces for printing. They allow users

to arrange and scale drawings appropriately for output on paper or other formats.




How does the `STRETCH` command modify objects in AutoCAD?


✔✔The `STRETCH` command allows users to extend or compress selected objects by dragging

their endpoints or vertices, effectively altering their shape while maintaining the rest of the

drawing.




What is the function of the `XREF` command, and how can it be beneficial in a multi-drawing

project?


✔✔The `XREF` (External Reference) command attaches external files to the current drawing,

enabling collaboration and maintaining consistency by linking updates across multiple drawings.




How can you customize the AutoCAD user interface to improve workflow efficiency?




1

, ✔✔You can customize the AutoCAD user interface by modifying toolbars, creating custom

commands, setting up user-defined shortcuts, and adjusting palettes to fit your specific workflow

needs.




What does the `SCALE` command do in AutoCAD, and how is it applied?


✔✔The `SCALE` command resizes objects proportionally by specifying a scale factor. It helps

adjust the size of objects without altering their proportions or relationships.




How do you use the `DIVIDE` command, and what is its purpose?


✔✔The `DIVIDE` command segments a line, arc, or polyline into equal parts by placing evenly

spaced points or blocks along the object, useful for detailed placement or alignment.




What is the `TEXT` command used for, and how do you apply it to your drawing?


✔✔The `TEXT` command creates single-line text entries within the drawing. You can define

text height, style, and orientation to annotate drawings with relevant information.




How does the `POLYLINE` command differ from the `LINE` command in AutoCAD?




2
