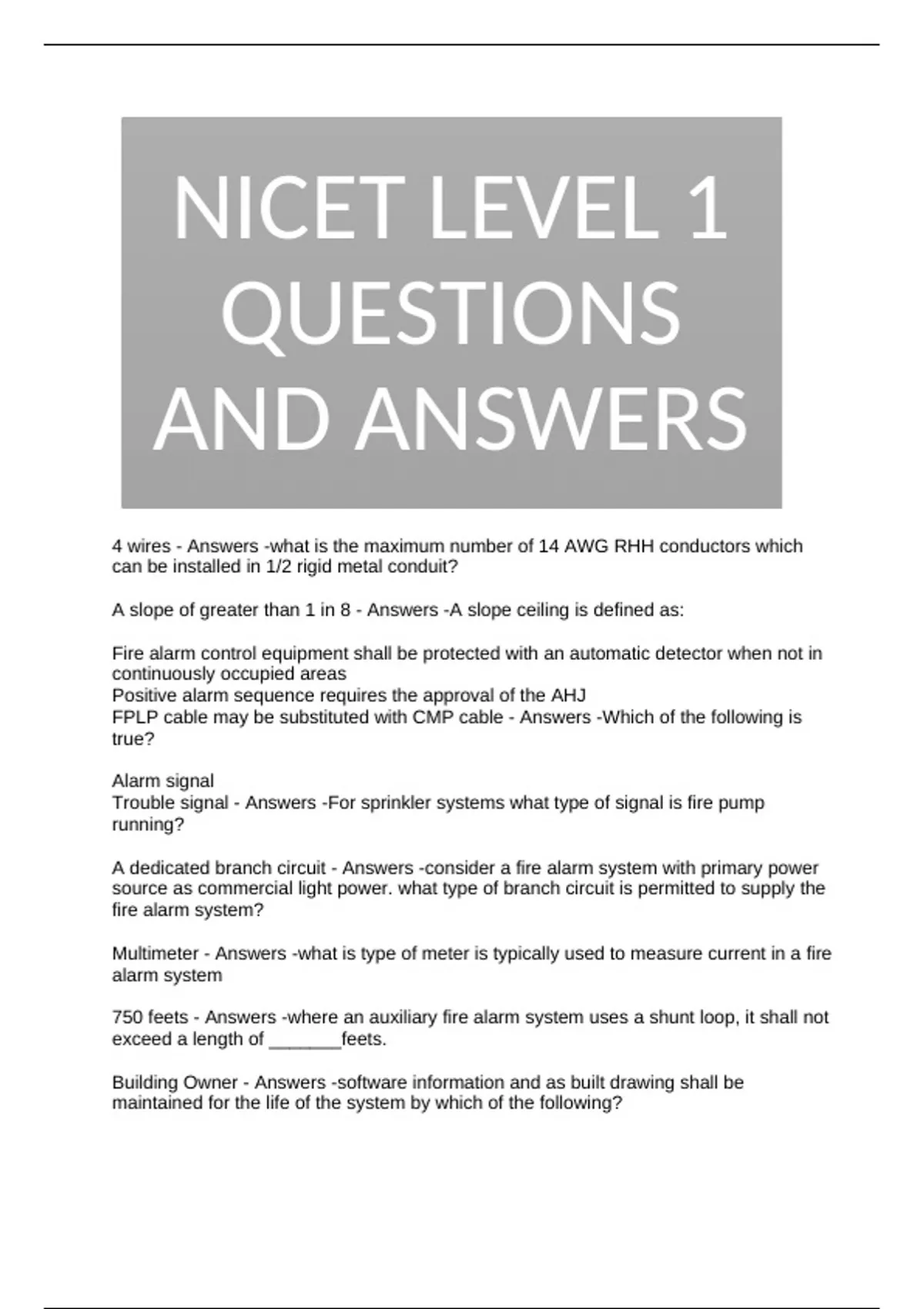

NICET LEVEL 1
QUESTIONS
AND ANSWERS
4 wires - Answers -what is the maximum number of 14 AWG RHH conductors which
can be installed in 1/2 rigid metal conduit?
A slope of greater than 1 in 8 - Answers -A slope ceiling is defined as:
Fire alarm control equipment shall be protected with an automatic detector when not in
continuously occupied areas
Positive alarm sequence requires the approval of the AHJ
FPLP cable may be substituted with CMP cable - Answers -Which of the following is
true?
Alarm signal
Trouble signal - Answers -For sprinkler systems what type of signal is fire pump
running?
A dedicated branch circuit - Answers -consider a fire alarm system with primary power
source as commercial light power. what type of branch circuit is permitted to supply the
fire alarm system?
Multimeter - Answers -what is type of meter is typically used to measure current in a fire
alarm system
750 feets - Answers -where an auxiliary fire alarm system uses a shunt loop, it shall not
exceed a length of _______feets.
Building Owner - Answers -software information and as built drawing shall be
maintained for the life of the system by which of the following?
, 2.54 ohms - Answers -what is the wire resistance in ohms of 500 feets of 16 awg solid
copper which is coated at 75 degrees C?
indirect pressure - Answers -which of the following concerns the use of pressure points
in the body to help control bleeding?
3 feets - Answers -Each EMT run between termination points shall be securely fastened
within _______feets of each outlet box, junction box, device box ,cabinet , conduit body,
or other tubing termination ?
5 telephones - Answers -two way shall be tele capable of permitting the simultaneous
operation of any ______telephone stationsin a commun talked mode
13 wires of 12 AWG - Answers -Consider a 4x4 Square electrical box that is 2 1/8"
deep.
what is the maximum number of 12 AWG conductor which can be used?
10 feets - Answers -EMT shall be security fastener in place at least every____feets
Maintained in safe condition - Answers -all hand and power tools,whether furnished by
employee or employer, shall be?
Very Extra High - Answers -A green color code green indication on a heat detector
indicates what operating temperature classification ?
4.04 ohms - Answers -What is the wire resistance in ohm of 500 feet of 18 AWG solid
copper which is a coated at 75 degrees C?
3.5'-48" to the actuator - Answers -Which of the following would be an appropriate
mounting height for a pull station?
1 flash per second - Answers -What is the minimum flash rate for a visible notification
device?
90" to the top of the device - Answers -What is the minimum mounting height for audible
notification devices?
Such that the entire lens is not less then 80" - Answers -What is the minimum mounting
height for visible notification devices?
Voltage=Current X Resistence - Answers -What is the formula for Ohm's Law
Put your meter in series with the circuit - Answers -When using your mult-meter to
measure, you must:
