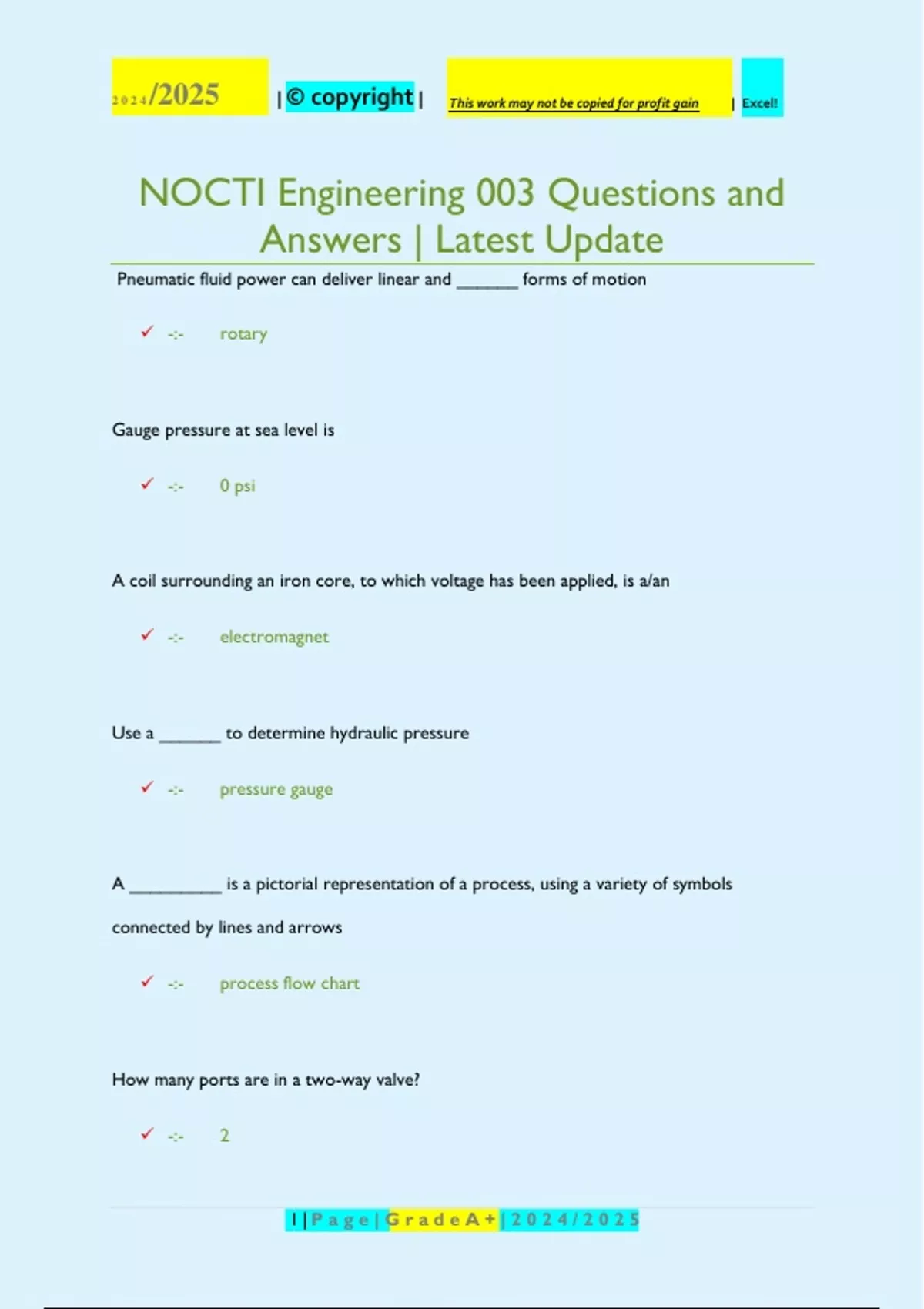

Pneumatic fluid power can deliver linear and ______ forms of motion -:- rotary Gauge pressure at sea level is -:- 0 psi A coil surrounding an iron core, to which voltage has been applied, is a/an -:- electromagnet Use a ______ to determine hydraulic pressure -:- pressure gauge A _________ is a pictorial representation of a process, using a variety of symbols connected by lines and arrows -:- process flow chart How many ports are in a two-way valve? -:- 2 2 | P a g e | G r a d e A + | 2 0 2 4 / 2 0 2 5 2 0 2 4 /2025 | © copyright | This work may not be copied for profit gain | Excel! The relationship of force, pressure and piston area in an air cylinder is represented by ( ) -:- force = (pressure) X (area) When energized, a solenoid actuates upon which of the following? -:- steel A solenoid works on the principle of -:- electromagnetic force pneumatic directional control valves are, many times, sized for convenience of piping; however, a more efficient method is to size according to -:- flow coefficient An engineer has connected an oscilloscope to measure the output of a standard wall electrical outlet. The oscilloscope shows a 60 hertz sine wave measuring 120 volts. This signal is -:- analog The worst enemy of a pneumatic system is -:- contamination 3 | P a g e | G r a d e A + | 2 0 2 4 / 2 0 2 5 2 0 2 4 /2025 | © copyright | This work may not be copied for profit gain | Excel! A specialized schematic used to document industrial control logic systems is a -:- ladder diagram The flow through a flow control valve will increase with increase with an increased -:- orifice or throat size In a fluid system, fluid encounters more ______ when it travels long distances -:- resistance The relationship of force, pressure, and piston area in an air cylinder is represented by -:- force = pressure x area A photo detector converts light to a/an ____________ signal -:- electrical Fluid in a hydraulic system is basically -:- not compressibl
