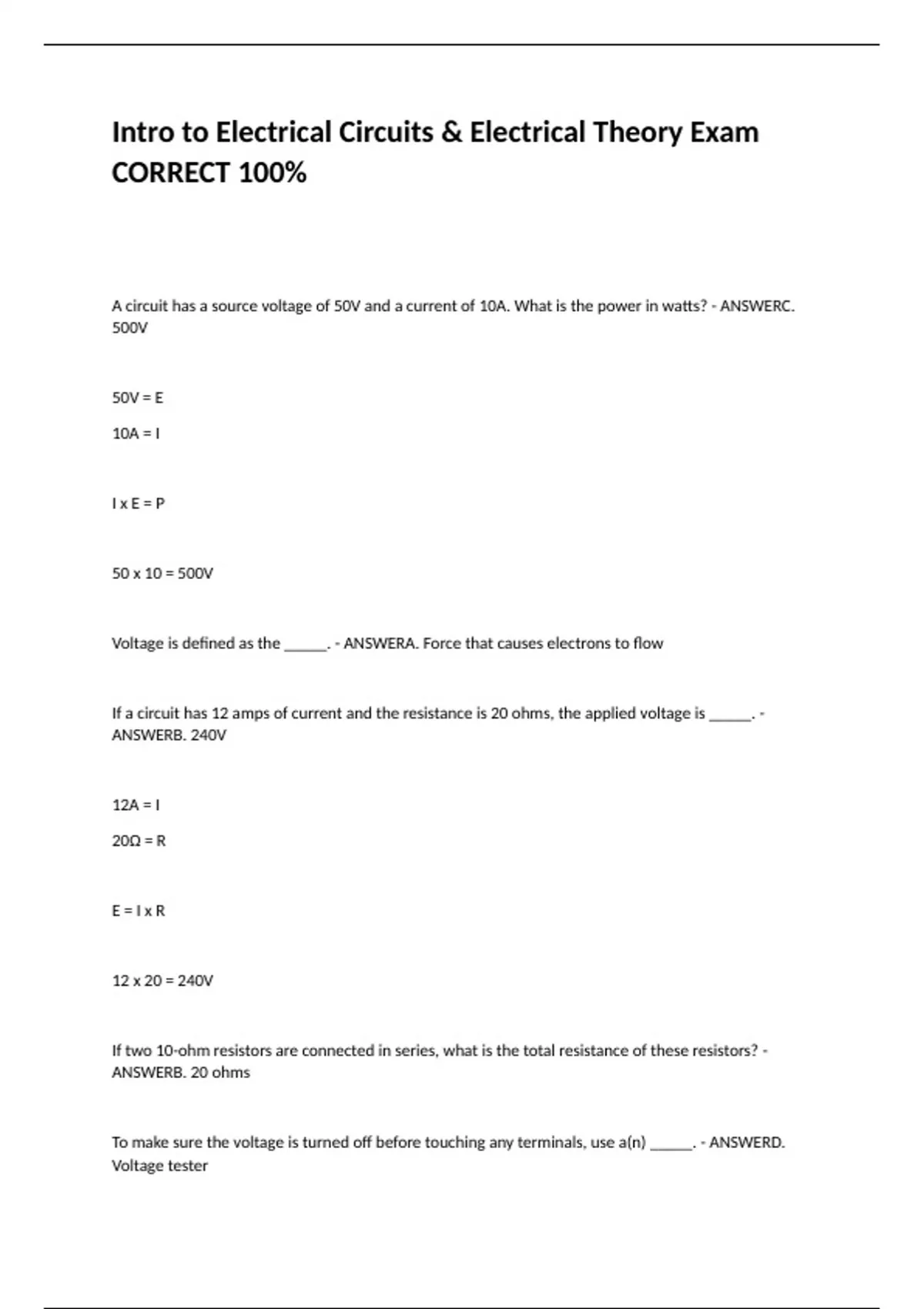

Preview 1 out of 4  pages

  • October 10, 2024
  • 4
  • 2024/2025
  • Exam (elaborations)
  • Questions & answers
  • Intro to Electrical Circuits & Electrical Theory E
  • Intro to Electrical Circuits & Electrical Theory E
avatar-seller
ClassRep2
Intro to Electrical Circuits & Electrical Theory Exam
CORRECT 100%



A circuit has a source voltage of 50V and a current of 10A. What is the power in watts? - ANSWERC.
500V



50V = E

10A = I



IxE=P



50 x 10 = 500V



Voltage is defined as the _____. - ANSWERA. Force that causes electrons to flow



If a circuit has 12 amps of current and the resistance is 20 ohms, the applied voltage is _____. -
ANSWERB. 240V



12A = I

20Ω = R



E=IxR



12 x 20 = 240V



If two 10-ohm resistors are connected in series, what is the total resistance of these resistors? -
ANSWERB. 20 ohms



To make sure the voltage is turned off before touching any terminals, use a(n) _____. - ANSWERD.
Voltage tester
