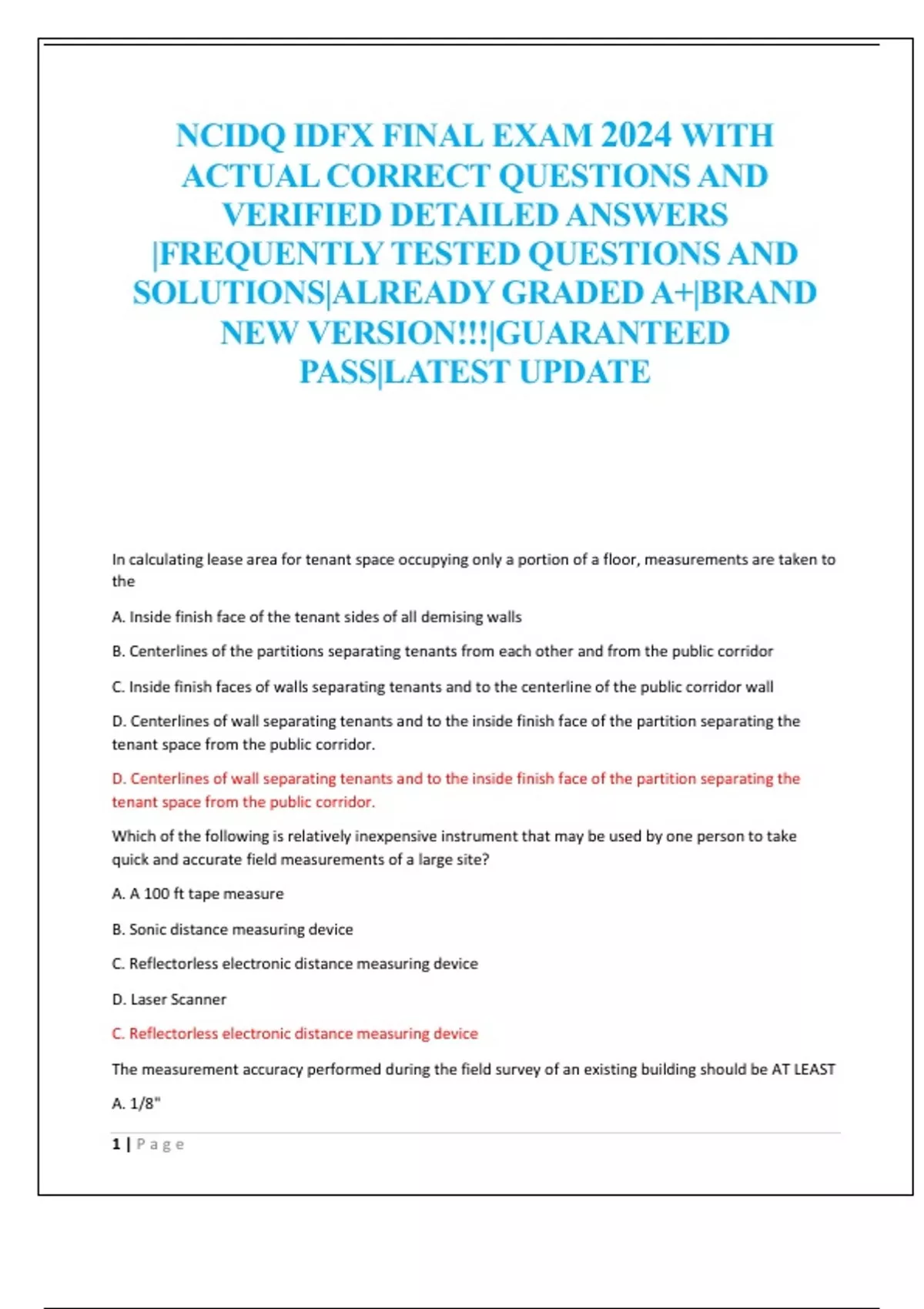

NCIDQ IDFX FINAL EXAM 2024 WITH
ACTUAL CORRECT QUESTIONS AND
VERIFIED DETAILED ANSWERS
|FREQUENTLY TESTED QUESTIONS AND
SOLUTIONS|ALREADY GRADED A+|BRAND
NEW VERSION!!!|GUARANTEED
PASS|LATEST UPDATE
In calculating lease area for tenant space occupying only a portion of a floor, measurements are taken to
the
A. Inside finish face of the tenant sides of all demising walls
B. Centerlines of the partitions separating tenants from each other and from the public corridor
C. Inside finish faces of walls separating tenants and to the centerline of the public corridor wall
D. Centerlines of wall separating tenants and to the inside finish face of the partition separating the
tenant space from the public corridor.
D. Centerlines of wall separating tenants and to the inside finish face of the partition separating the
tenant space from the public corridor.
Which of the following is relatively inexpensive instrument that may be used by one person to take
quick and accurate field measurements of a large site?
A. A 100 ft tape measure
B. Sonic distance measuring device
C. Reflectorless electronic distance measuring device
D. Laser Scanner
C. Reflectorless electronic distance measuring device
The measurement accuracy performed during the field survey of an existing building should be AT LEAST
A. 1/8"
1|Page
,B. 1/2"
C. One-half the required accuracy
D. Such that strings of dimensions are similar to the overall dimension
C. One-half the required accuracy
All of the following are part of a drawing's title block EXPECT a
A. North Arrow
B. Project title
C. Copyright notice
D. List of notes of keynotes
A. North Arrow
What does the symbol shown represent?
A. Recessed directional light
B. Suspended exit light
C. Floor telephone outlet
D. Fire alarm horn
B. Suspended exit light
The symbol shown is used to indicate what type of control?
A. A light controlled from two locations
B. A light controlled from three locations
C. A light and a fan controlled from the same switch
D. A three-position switch
A. A light controlled from two locations
2|Page
,What symbol is used to indicate a floor-mounted telephone outlet?
C.
Which of the following scales should NEVER be used for interior design construction drawings?
A. 1/8 in = 1 ft 0 in
B. 3/16 in = 1 ft 0 in
C. 3/4 in = 1 ft 0 in
D. 1 in = 1 ft 0 in
B. 3/16 in = 1 ft 0 in
To show code compliance with fire-resistive construction for a complex project, an interior designer
would use
A. A separate floor plan highlighting fire-rated partitions
B. Heavy dashed lines on a construction plan
C. Shaded flag notes on the construction plan
D. A schedule of partitions
A. A separate floor plan highlighting fire-rated partitions
Profile lines are MOST often used on
A. Floor plans
B. Reflected ceiling plans
C. Elevations
D. Sections
D. Sections
Which scales are MOST commonly used for interior building details
3|Page
, A. 1/2 in = 1 ft 0 in; 1 ft 0 in
B. 1 in - 1 ft 0 in; 1 1/2 in = 1 ft 0 in
C. 1 1/2 in = 1 ft in; 3 in = 1 ft 0 in
D. 6 in = 1 ft 0 in; full size
C. 1 1/2 in = 1 ft in; 3 in = 1 ft 0 in
The position and height of a toilet room's grab bars are BEST shown in the construction plans by using
A. a perspective drawing
B. an isometric drawing
C. a section drawing
D. an elevation drawing
D. an elevation drawing
Which of the following is the most accurate way to measure the interior distances of a large church?
A. Laser Scanning
B. Orthophotography
C. Rectified photography
D. Handheld electronic distance measurement
A. Laser Scanning
The location of return air grilles are shown on drawings provided by
A. The architect
B. The interior designer
C. The mechanical engineer
D. Both the interior designer and the mechanical engineer
D. Both the interior designer and the mechanical engineer
Adjacency requirements for the physical movement of goods in a manufacturing plant would BEST be
illustrated with
A. An adjacency matrix
B. A bubble diagram
C. A flowchart
D. A stacking diagram
4|Page
