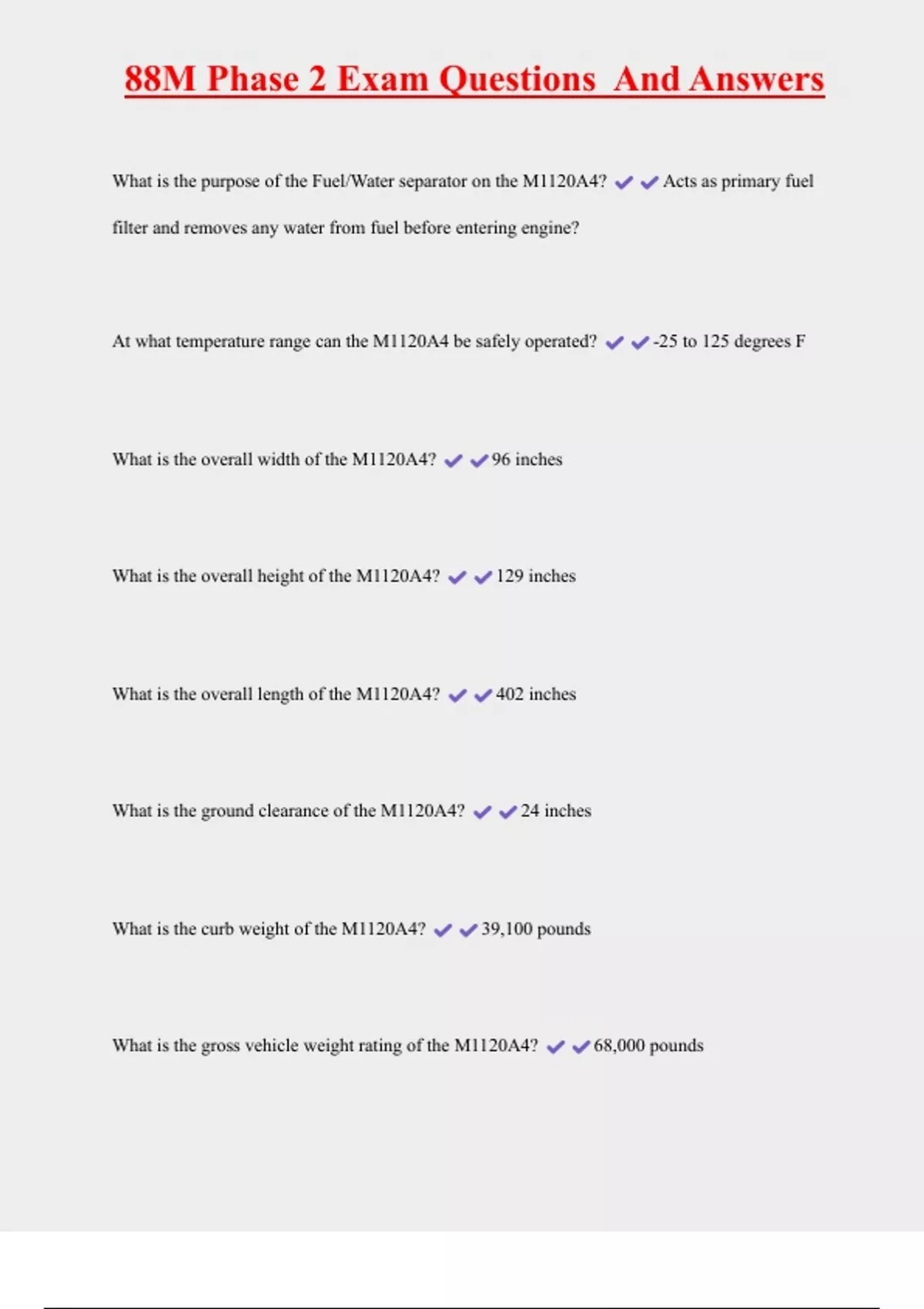

What is the purpose of the Fuel/Water separator on the M1120A4? Acts as primary fuel
filter and removes any water from fuel before entering engine?
At what temperature range can the M1120A4 be safely operated? -25 to 125 degrees F
What is the overall width of the M1120A4? 96 inches
What is the overall height of the M1120A4? 129 inches
What is the overall length of the M1120A4? 402 inches
What is the ground clearance of the M1120A4? 24 inches
What is the curb weight of the M1120A4? 39,100 pounds
What is the gross vehicle weight rating of the M1120A4? 68,000 pounds
, 88M Phase 2 Exam Questions And Answers
What is the gross combination vehicle weight rating of the M1120A4? 109,000 pounds
Maximum grade at gross vehicle weight rating for the M1120A4? 60 percent
Maximum grade at gross combination vehicle weight rating for the M1120A4? 30 percent
What is the limp home speed of the M1120A4? 10 MPH
What is the maximum towed speed of the M1120A4? 15 MPH
What is the maximum side slope grade for the M1120A4? 30 percent
Maximum governed engine speed for a loaded M1120A4? 2050 to 2150 RPM
Maximum governed engine speed for an unloaded M1120A4? 2070 to 2170 RPM
What is the 24V alternator in amps on the M1120A4? 260 AMPS
, 88M Phase 2 Exam Questions And Answers
What is the maximum LHS lifting load on the M1120A4? 26,000 pounds
At what air pressure will the low air buzzer turn on in the M1120A4? 65 to 75 PSI
What is the tire pressure for the rear tires on an M1120A4? 65 PSI
What is the tire pressure for the spare tire on an M1120A4? 100 PSI
What is the tire pressure for the front tires on an M1120A4? 83 PSI
What is the tire pressure of the front tires of an M1120A4 with an armor kit? 75 PSI
When will the air pressure indicator buzzer turn on in an M1120A4? When air pressure
falls below 65 to 75 PSI
At what air pressure is the M1120A4 safe to drive? At least 100 PSI
