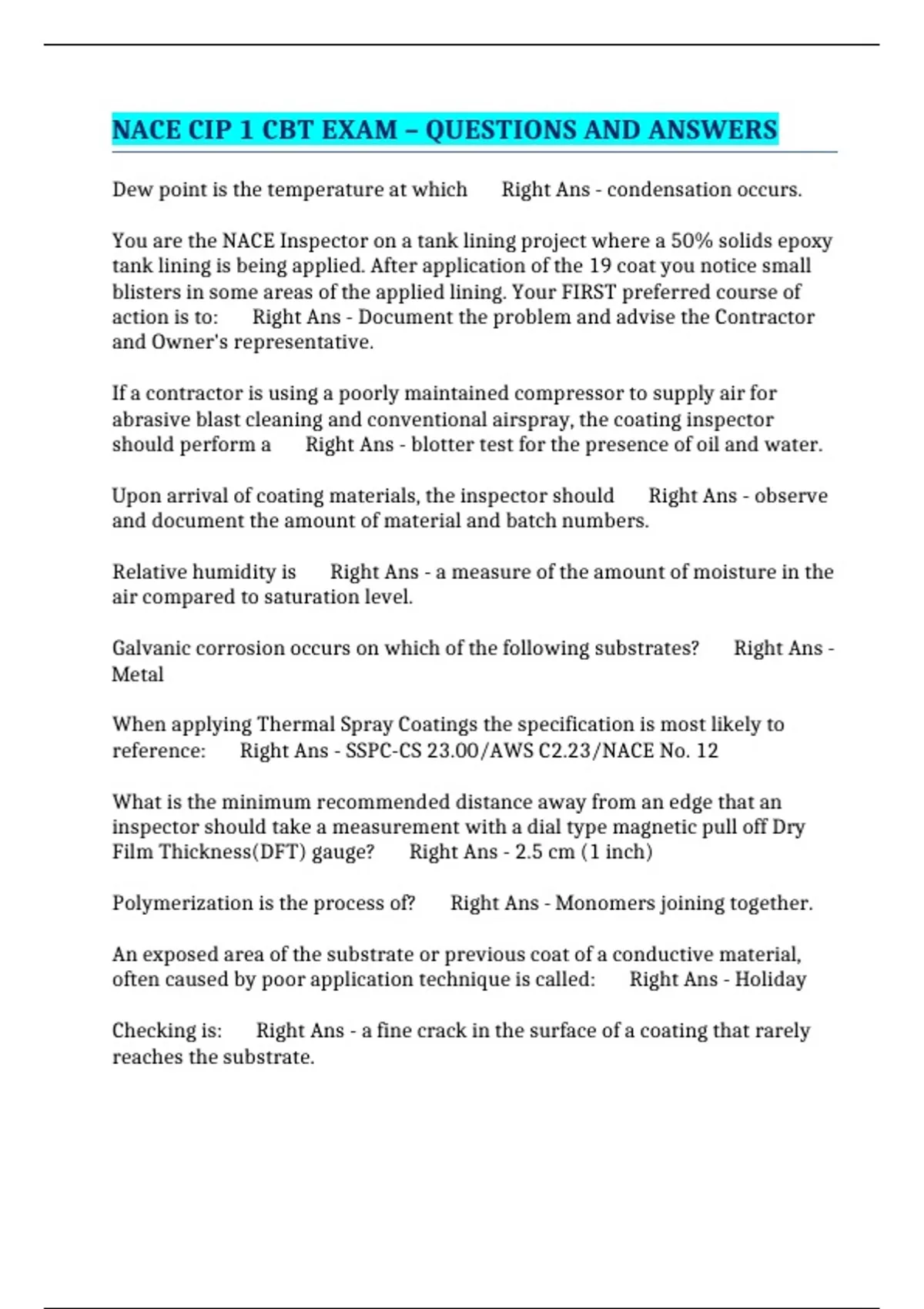

NACE CIP 1 CBT EXAM – QUESTIONS AND ANSWERS
Dew point is the temperature at which Right Ans - condensation occurs.
You are the NACE Inspector on a tank lining project where a 50% solids epoxy
tank lining is being applied. After application of the 19 coat you notice small
blisters in some areas of the applied lining. Your FIRST preferred course of
action is to: Right Ans - Document the problem and advise the Contractor
and Owner's representative.
If a contractor is using a poorly maintained compressor to supply air for
abrasive blast cleaning and conventional airspray, the coating inspector
should perform a Right Ans - blotter test for the presence of oil and water.
Upon arrival of coating materials, the inspector should Right Ans - observe
and document the amount of material and batch numbers.
Relative humidity is Right Ans - a measure of the amount of moisture in the
air compared to saturation level.
Galvanic corrosion occurs on which of the following substrates? Right Ans -
Metal
When applying Thermal Spray Coatings the specification is most likely to
reference: Right Ans - SSPC-CS 23.00/AWS C2.23/NACE No. 12
What is the minimum recommended distance away from an edge that an
inspector should take a measurement with a dial type magnetic pull off Dry
Film Thickness(DFT) gauge? Right Ans - 2.5 cm (1 inch)
Polymerization is the process of? Right Ans - Monomers joining together.
An exposed area of the substrate or previous coat of a conductive material,
often caused by poor application technique is called: Right Ans - Holiday
Checking is: Right Ans - a fine crack in the surface of a coating that rarely
reaches the substrate.
,Inspection documentation is important because: Right Ans - Owners use
the documentation for a variety of purposes.
An Inspectors personal log book should contain: Right Ans - No comments
regarding the application team.
You have just received your NACE CIP Level 1 certification when you are
asked to supervise a team of uncertified field pipeline inspectors. Your FIRST
preferred course of action is to: Right Ans - Review the NACE Attestation
prior to making a decision.
Good record can provide maintenance departments with detailed information
about ALL of the following EXCEPT: Right Ans - How the item was coated.
Non Conformance Reports are completed by the Inspector: Right Ans -
When the Inspector and Contractor deem it to be significant non conforming
item.
The initial steel condition is important to the NACE Inspector because:
Right Ans - The Inspector may have to reject the steel.
The form of corrosion that has the largest potential for unexpected
catastrophic failure is: Right Ans - Galvanic Corrosion
What is used to determine compressed air cleanliness? Right Ans -
Profilometer
Osmotic blistering is most likely to occur as a result of: Right Ans - Airless
spray application.
When performing tests for oil and grease using an ultra violet light, the NACE
Inspector should be aware that: Right Ans - Synthetic oil or grease may not
be identified.
To achieve consistently accurate results with ALL alt test equipment: Right
Ans - wash your hands before sampling.
When holiday testing is required the Inspector is always required to enforce
what standard? Right Ans - NACE SP 0188
, If the specifier does not identify a restriction level in accordance with SSPC PA
2, the default restriction level is: Right Ans - Level 3
Fine cracks in the surface of a coating that rarely reach the substrate are
called: Right Ans - Checking
It is good practice for the NACE Inspector to have instrument calibration
certificates available: Right Ans - At all times.
In a non convertible coating the role of the primary solvent is to: Right Ans
- To control the evaporation rate.
Removal of weld splatter is required: Right Ans - When specifically
identified in the owners specification.
Common errors that may produce inaccurate readings when using a Dial Type
Magnetic Pull Off Dry Film Thickness(DFT) gauge include: Right Ans -
Failing to determine the Base Metal Reading(BMR),Rotating the dial too fast
when taking measurements, and Measuring ditty, tacky, or soft films.
Conventional spray us good choice when: Right Ans - High quality finishes
are required.
Which of these tests uses a syringe? Right Ans - Bresle Patch
Which one of these elements is not necessary for corrosion to occur: Right
Ans - Reference Cell
Digital hygrometers Right Ans - determine relative humidity, air
temperature,and dew point temperature.
Using SSPC Vis 1 as a guide when performing a visual inspection of a steel
surface prior to surface preparation a NACE Inspector would assign which
designations to the surface condition: Right Ans - Rust Grades A-D
Inspectors daily reports are used: Right Ans - By the contractor to estimate
the mount of work done that day, To provide continuity between inspectors,
