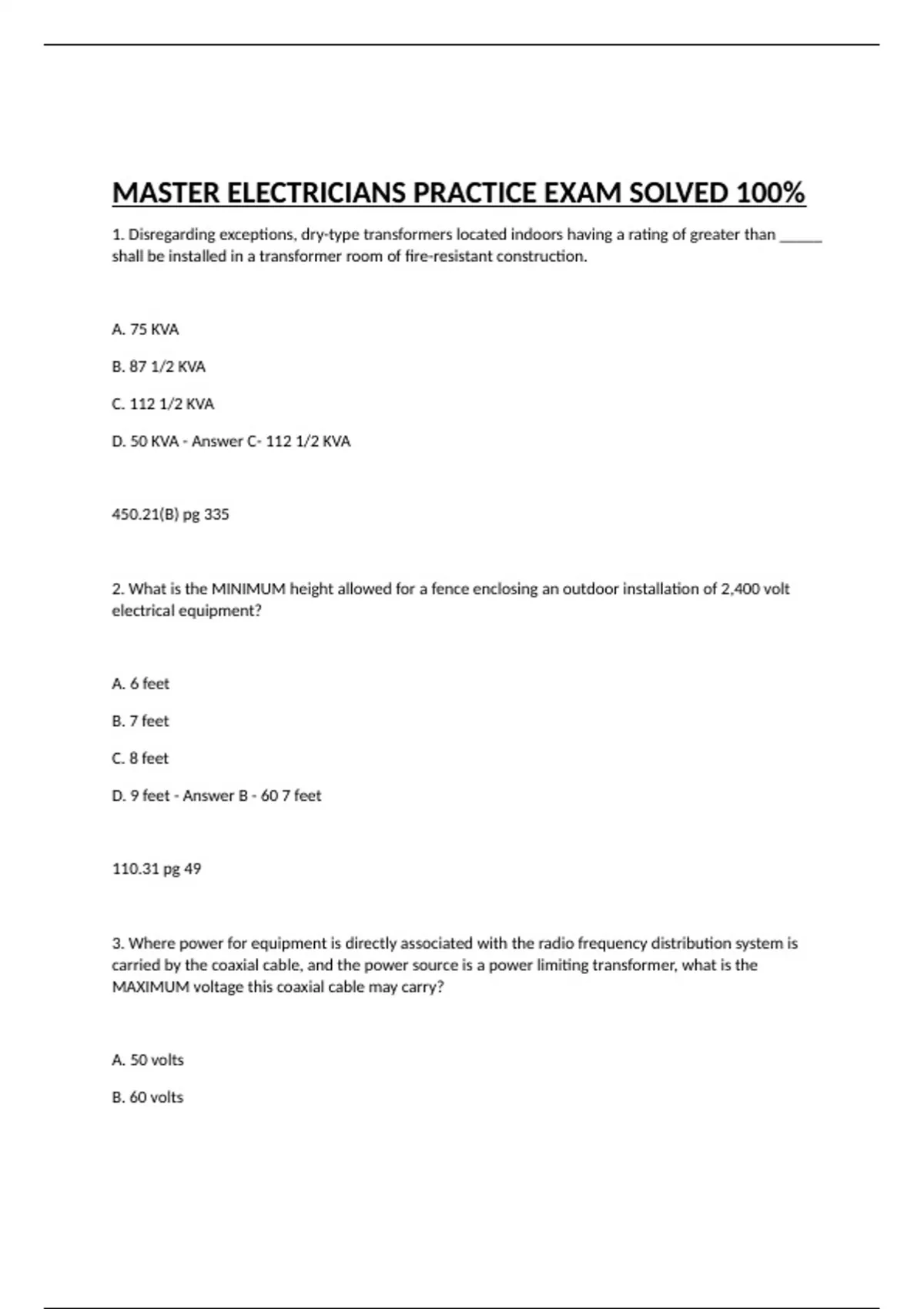

MASTER ELECTRICIANS PRACTICE EXAM SOLVED 100%

1. Disregarding exceptions, dry-type transformers located indoors having a rating of greater than _____ shall be installed in a transformer room of fire-resistant construction. A. 75 KVA B. 87 1/2 KVA C. 112 1/2 KVA D. 50 KVA - Answer C- 112 1/2 KVA 450.21(B) pg 335 2. What is the MINIMUM height allowed for a fence enclosing an outdoor installation of 2,400 volt electrical equipment? A. 6 feet B. 7 feet C. 8 feet D. 9 feet - Answer B - 60 7 feet 110.31 pg 49 3. Where power for equipment is directly associated with the radio frequency distribution system is carried by the coaxial cable, and the power source is a power limiting transformer, what is the MAXIMUM voltage this coaxial cable may carry? A. 50 volts B. 60 volts C. 120 volts D. 150 volts - Answer B - 60 volts 820.15 pg 656 4. Where a 15-ampere rated general-use ac snap switch is used as a disconnecting means for an ac motor, the NEC requires the MAXIMUM full-load current rating of the motor to be NO more than _________. A. 7.5 amperes B. 10 amperes C. 12 amperes D. 15 amperes - Answer C - 12 amperes 430.109(C)(2) pg 315 15 amperes x 80% = 12 amperes 5. Determine the MAXIMUM number of 125-volts, general-purpose receptacle the NEC permits to be protected by a 20-ampere 120-volt, single-pole inverse time circuit breaker in a commercial occupancy. A. 18 B. 15 C. 13 D. 10 - Answer C - 13 220.14(I) pg 71 120 volts x 20 amps = 2,400 VA (circuit) 2,400 VA (circuit) / 180 VA (one receptacle) = 13 outlets 6. Which of the following statement, if any, is/are true regarding illumination for service equipment installed in electrical equipment room? I. The illumination shall not be controlled by means of three way switches. II. The illumination shall not be controlled by automatic means only. A. I only B. II only C. both I and II D. neither I nor II - Answer B - II only 110.26(D) pg 48 7. In regard to the tenant spaces in a retail shopping mall; each occupant shall have access to the main disconnecting means, EXCEPT: A. where the service and maintenance are provided by the building management. B. where there are more than six disconnecting means provided. C. where the primary feeder transformer does not exceed 600 volts. D. where the secondary of the service transformer does not exceed 240-volts to ground.. - Answer A - where the service and maintenance are provided by the building management. 240.24(B)(1) pg 98 8. Determine the conductor allowable ampacity given the following conditions
