Auto Cad Exam 1 || Already Passed.

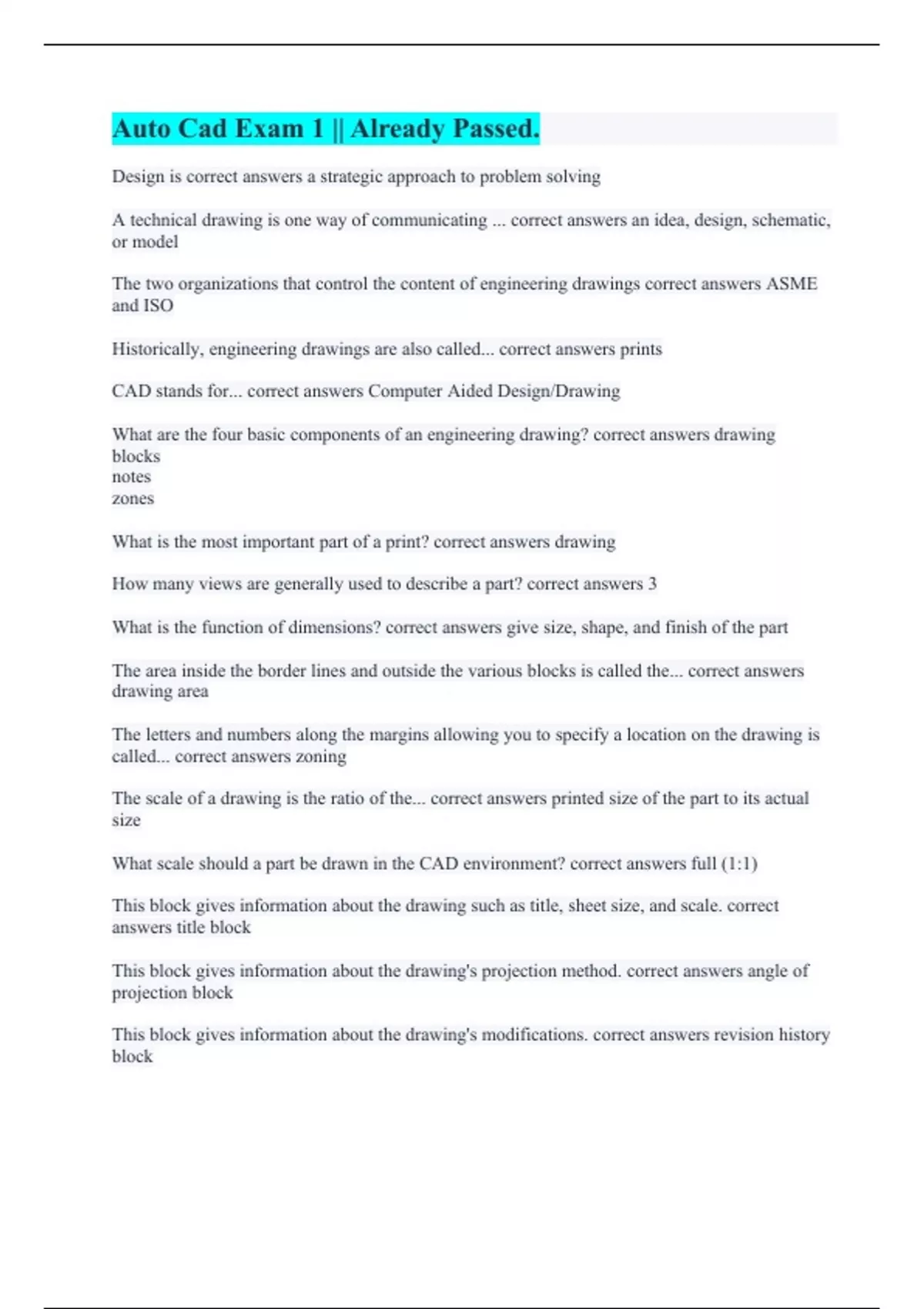

Design is correct answers a strategic approach to problem solving A technical drawing is one way of communicating ... correct answers an idea, design, schematic, or model The two organizations that control the content of engineering drawings correct answers ASME and ISO Historically, engineering drawings are also called... correct answers prints CAD stands for... correct answers Computer Aided Design/Drawing What are the four basic components of an engineering drawing? correct answers drawing blocks notes zones What is the most important part of a print? correct answers drawing How many views are generally used to describe a part? correct answers 3 What is the function of dimensions? correct answers give size, shape, and finish of the part The area inside the border lines and outside the various blocks is called the... correct answers drawing area The letters and numbers along the margins allowing you to specify a location on the drawing is called... correct answers zoning The scale of a drawing is the ratio of the... correct answers printed size of the part to its actual size What scale should a part be drawn in the CAD environment? correct answers full (1:1) This block gives information about the drawing such as title, sheet size, and scale. correct answers title block This block gives information about the drawing's projection method. correct answers angle of projection block This block gives information about the drawing's modifications. correct answers revision history block
