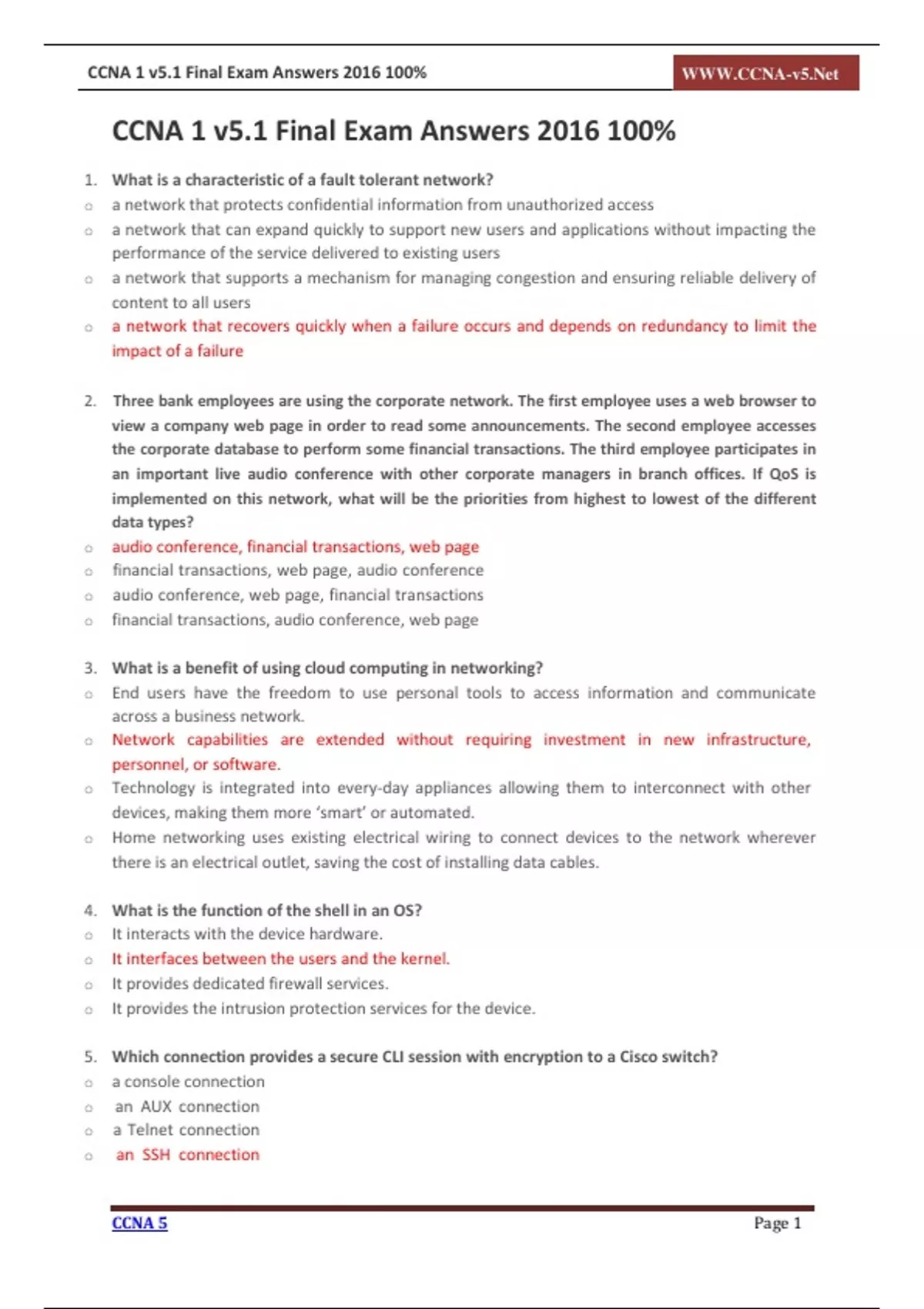

CCNA 1 v5.1 Final Exam Answers 2016 100%
1.
WWW.CCNA-v5.Net
What is a characteristic of a fault tolerant network?
o a network that protects confidential information from unauthorized access
o a network that can expand quickly to support new users and applications without impacting the
...
CCNA 1 v5.1 Final Exam Answers 2016 100% WWW.CCNA-v5.Net
CCNA 1 v5.1 Final Exam Answers 2016 100%
1. What is a characteristic of a fault tolerant network?
o a network that protects confidential information from unauthorized access
o a network that can expand quickly to support new users and applications without impacting the
performance of the service delivered to existing users
o a network that supports a mechanism for managing congestion and ensuring reliable delivery of
content to all users
o a network that recovers quickly when a failure occurs and depends on redundancy to limit the
impact of a failure
2. Three bank employees are using the corporate network. The first employee uses a web browser to
view a company web page in order to read some announcements. The second employee accesses
the corporate database to perform some financial transactions. The third employee participates in
an important live audio conference with other corporate managers in branch offices. If QoS is
implemented on this network, what will be the priorities from highest to lowest of the different
data types?
o audio conference, financial transactions, web page
o financial transactions, web page, audio conference
o audio conference, web page, financial transactions
o financial transactions, audio conference, web page
3. What is a benefit of using cloud computing in networking?
o End users have the freedom to use personal tools to access information and communicate
across a business network.
o Network capabilities are extended without requiring investment in new infrastructure,
personnel, or software.
o Technology is integrated into every-day appliances allowing them to interconnect with other
devices, making them more ‘smart’ or automated.
o Home networking uses existing electrical wiring to connect devices to the network wherever
there is an electrical outlet, saving the cost of installing data cables.
4. What is the function of the shell in an OS?
o It interacts with the device hardware.
o It interfaces between the users and the kernel.
o It provides dedicated firewall services.
o It provides the intrusion protection services for the device.
5. Which connection provides a secure CLI session with encryption to a Cisco switch?
o a console connection
o an AUX connection
o a Telnet connection
o an SSH connection
CCNA 5 Page 1
,CCNA 1 v5.1 Final Exam Answers 2016 100% WWW.CCNA-v5.Net
6. A network technician is attempting to configure an interface by entering the following
command: SanJose(config)# ip address 192.168.2.1 255.255.255.0. The command is rejected
by the device. What is the reason for this?
o The command is being entered from the wrong mode of operation.
o The command syntax is wrong.
o The subnet mask information is incorrect.
o The interface is shutdown and must be enabled before the switch will accept the IP address.
7. An administrator uses the Ctrl-Shift-6 key combination on a switch after issuing the ping
command. What is the purpose of using these keystrokes?
o to restart the ping process
o to interrupt the ping process
o to exit to a different configuration mode
o to allow the user to complete the command
8. Refer to the exhibit. A network administrator is configuring access control to switch SW1. If
the administrator uses a console connection to connect to the switch, which password is
needed to access user EXEC mode?
CCNA1 Final Exam v5.1 003
o letmein
o secretin
o lineconin
o linevtyin
9. On which switch interface would an administrator configure an IP address so that the switch
can be managed remotely?
o FastEthernet0/1
o VLAN 1
o vty 0
o console 0
CCNA 5 Page 2
,CCNA 1 v5.1 Final Exam Answers 2016 100% WWW.CCNA-v5.Net
10. What protocol is responsible for controlling the size of segments and the rate at which
segments are exchanged between a web client and a web server?
o TCP
o IP
o HTTP
o Ethernet
11. What is an advantage to using a protocol that is defined by an open standard?
o A company can monopolize the market.
o The protocol can only be run on equipment from a specific vendor.
o An open standard protocol is not controlled or regulated by standards organizations.
o It encourages competition and promotes choices.
12. What are two benefits of using a layered network model? (Choose two.)
o It assists in protocol design.
o It speeds up packet delivery.
o It prevents designers from creating their own model.
o It prevents technology in one layer from affecting other layers.
o It ensures a device at one layer can function at the next higher layer.
13. Which two OSI model layers have the same functionality as two layers of the TCP/IP model?
(Choose two.)
o data link
o network
o physical
o session
o transport
14. Which name is assigned to the transport layer PDU?
o bits
o data
o frame
o packet
o segment
15. A network administrator is troubleshooting connectivity issues on a server. Using a tester, the
administrator notices that the signals generated by the server NIC are distorted and not
usable. In which layer of the OSI model is the error categorized?
o presentation layer
o network layer
o physical layer
o data link layer
CCNA 5 Page 3
, CCNA 1 v5.1 Final Exam Answers 2016 100% WWW.CCNA-v5.Net
16. A network administrator is measuring the transfer of bits across the company backbone for a
mission critical financial application. The administrator notices that the network throughput
appears lower than the bandwidth expected. Which three factors could influence the
differences in throughput? (Choose three.)
o the amount of traffic that is currently crossing the network
o the sophistication of the encapsulation method applied to the data
o the type of traffic that is crossing the network
o the latency that is created by the number of network devices that the data is crossing
o the bandwidth of the WAN connection to the Internet
o the reliability of the gigabit Ethernet infrastructure of the backbone
17. What is a characteristic of UTP cabling?
o cancellation
o cladding
o immunity to electrical hazards
o woven copper braid or metallic foil
18. What are two characteristics of fiber-optic cable? (Choose two.)
o It is not affected by EMI or RFI.
o Each pair of cables is wrapped in metallic foil.
o It combines the technique of cancellation, shielding, and twisting to protect data.
o It typically contains 4 pairs of fiber-optic wires.
o It is more expensive than UTP cabling is.
19. What is a characteristic of the LLC sublayer?
o It provides the logical addressing required that identifies the device.
o It provides delimitation of data according to the physical signaling requirements of the medium.
o It places information in the frame allowing multiple Layer 3 protocols to use the same network
interface and media.
o It defines software processes that provide services to the physical layer.
20. A network team is comparing physical WAN topologies for connecting remote sites to a
headquarters building. Which topology provides high availability and connects some, but not
all, remote sites?
o mesh
o partial mesh
o hub and spoke
o point-to-point
21. What method is used to manage contention-based access on a wireless network?
o CSMA/CD
o priority ordering
o CSMA/CA
o token passing
CCNA 5 Page 4
