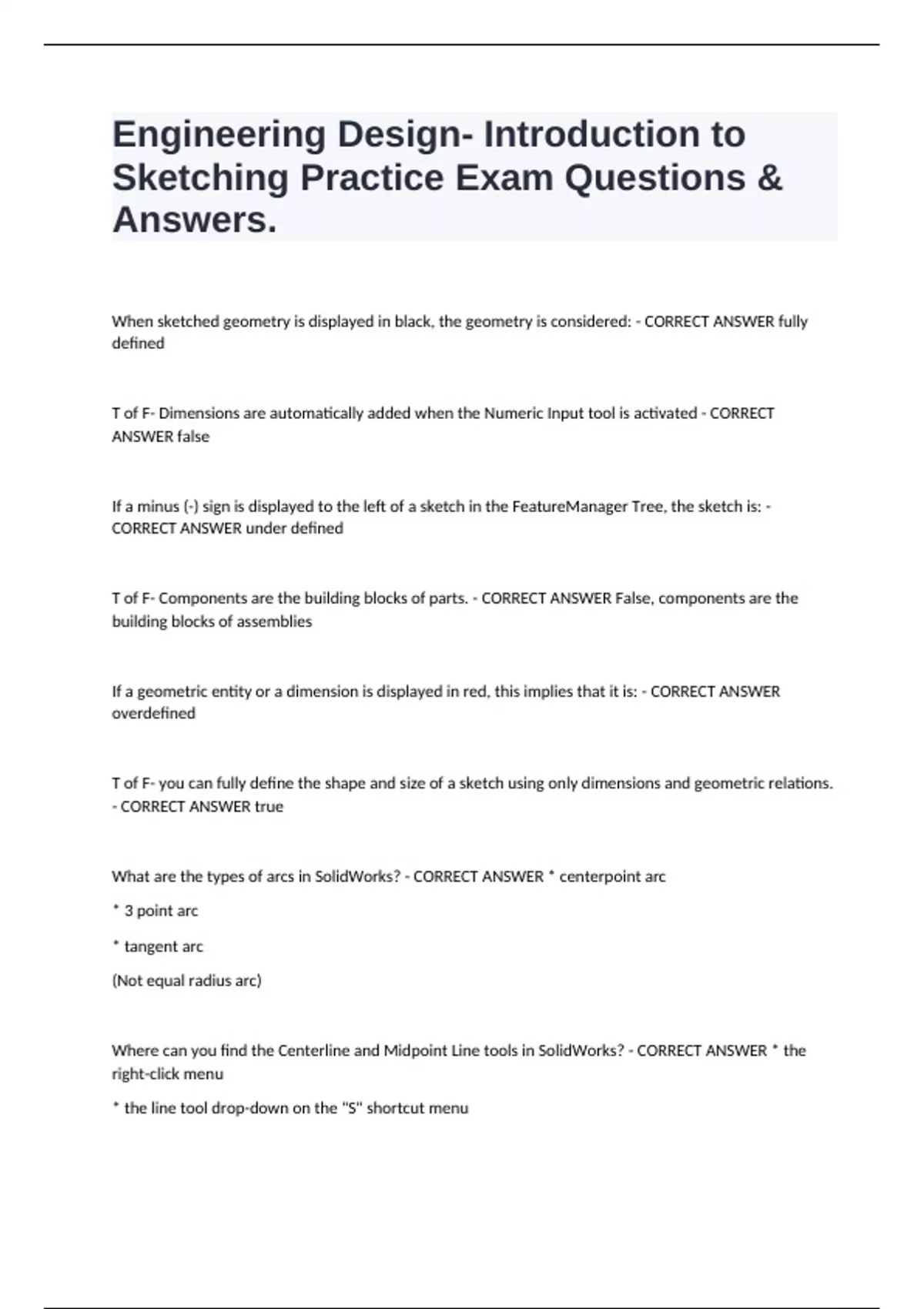

Engineering Design- Introduction to
Sketching Practice Exam Questions &
Answers.

When sketched geometry is displayed in black, the geometry is considered: - CORRECT ANSWER fully
defined



T of F- Dimensions are automatically added when the Numeric Input tool is activated - CORRECT
ANSWER false



If a minus (-) sign is displayed to the left of a sketch in the FeatureManager Tree, the sketch is: -
CORRECT ANSWER under defined



T of F- Components are the building blocks of parts. - CORRECT ANSWER False, components are the
building blocks of assemblies



If a geometric entity or a dimension is displayed in red, this implies that it is: - CORRECT ANSWER
overdefined



T of F- you can fully define the shape and size of a sketch using only dimensions and geometric relations.
- CORRECT ANSWER true



What are the types of arcs in SolidWorks? - CORRECT ANSWER * centerpoint arc

* 3 point arc

* tangent arc

(Not equal radius arc)



Where can you find the Centerline and Midpoint Line tools in SolidWorks? - CORRECT ANSWER * the
right-click menu

* the line tool drop-down on the "S" shortcut menu
