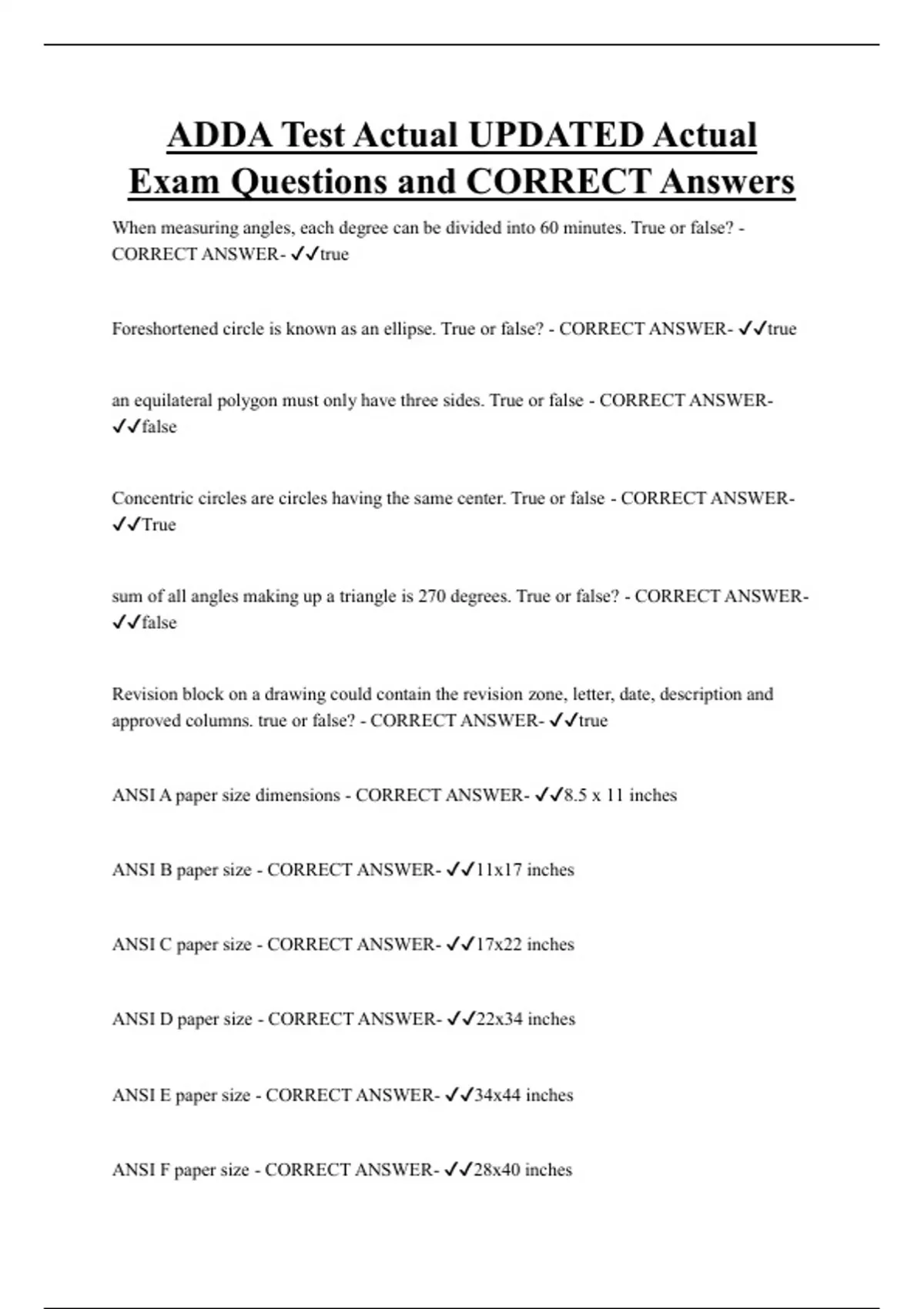

ADDA Test Actual UPDATED Actual
Exam Questions and CORRECT Answers
When measuring angles, each degree can be divided into 60 minutes. True or false? -
CORRECT ANSWER- true
Foreshortened circle is known as an ellipse. True or false? - CORRECT ANSWER- true
an equilateral polygon must only have ...
ADDA Test Actual UPDATED Actual
Exam Questions and CORRECT Answers
When measuring angles, each degree can be divided into 60 minutes. True or false? -
CORRECT ANSWER- ✔✔true
Foreshortened circle is known as an ellipse. True or false? - CORRECT ANSWER- ✔✔true
an equilateral polygon must only have three sides. True or false - CORRECT ANSWER-
✔✔false
Concentric circles are circles having the same center. True or false - CORRECT ANSWER-
✔✔True
sum of all angles making up a triangle is 270 degrees. True or false? - CORRECT ANSWER-
✔✔false
Revision block on a drawing could contain the revision zone, letter, date, description and
approved columns. true or false? - CORRECT ANSWER- ✔✔true
ANSI A paper size dimensions - CORRECT ANSWER- ✔✔8.5 x 11 inches
ANSI B paper size - CORRECT ANSWER- ✔✔11x17 inches
ANSI C paper size - CORRECT ANSWER- ✔✔17x22 inches
ANSI D paper size - CORRECT ANSWER- ✔✔22x34 inches
ANSI E paper size - CORRECT ANSWER- ✔✔34x44 inches
ANSI F paper size - CORRECT ANSWER- ✔✔28x40 inches
,ANSI G paper size - CORRECT ANSWER- ✔✔11x22.5-90 inches
ANSI H paper size - CORRECT ANSWER- ✔✔28x44-143 inches
ANSI J paper size - CORRECT ANSWER- ✔✔34x55-176 inches
ANSI K paper size - CORRECT ANSWER- ✔✔40x55-143 inches
operating system - CORRECT ANSWER- ✔✔software that controls the internal operation of
the computer
plotter - CORRECT ANSWER- ✔✔output device for a computer
,Graphics card - CORRECT ANSWER- ✔✔computer hardware that controls the resolution of
the monitor
wire frame - CORRECT ANSWER- ✔✔is a "stick" representation of a 3d model whose
shape is defined by series of the lines and curves
CPU - CORRECT ANSWER- ✔✔hardware device that runs the computer programs and
controls the attached input and output devices
Milimeter - CORRECT ANSWER- ✔✔1/1000 of a meter
Kilometer - CORRECT ANSWER- ✔✔1000 meters = to 1 kilometer
centimeter - CORRECT ANSWER- ✔✔equal to one hundredth of a meter
decimeter - CORRECT ANSWER- ✔✔equal to one tenth of a meter
Skew lines - CORRECT ANSWER- ✔✔line which are non-intersecting, non-parallel in 3d
space
Metric system - CORRECT ANSWER- ✔✔decimal system of weights and measures based
on the meter and kilogram
Countersink - CORRECT ANSWER- ✔✔to recess a hole with a cone shape tool to provide a
seat for a flat head screw
Counterdrill - CORRECT ANSWER- ✔✔to form a conical shoulder in a drilled hole by
enlarging it with a larger drill
blind hole - CORRECT ANSWER- ✔✔a hole that does not go all the way through the part
, counterbore - CORRECT ANSWER- ✔✔enlargement of the end of a hole to a specified
diameter and depth
tap - CORRECT ANSWER- ✔✔a tool used to cut internal threads
ream - CORRECT ANSWER- ✔✔to enlarge a hole to a more accurate size and surface finish
Bore - CORRECT ANSWER- ✔✔to enlarge a hole to a more accurate size
change order - CORRECT ANSWER- ✔✔an approved engineering change request on an
existing drawing
Database - CORRECT ANSWER- ✔✔an organized collection of standard parts, libraries,
completed designs, documentation and computer programs
Visible lines or Object lines - CORRECT ANSWER- ✔✔indicates the contour of the object
hidden line - CORRECT ANSWER- ✔✔uniformly spaced 1/8 inch dash lines
cutting plane line - CORRECT ANSWER- ✔✔indicates the location of the cut made for a
section view
viewing plane line - CORRECT ANSWER- ✔✔used with removed partial views
break line - CORRECT ANSWER- ✔✔used when complete views are not required
Chain line - CORRECT ANSWER- ✔✔indicates an area on a part that will receive special
treatment
hard drive - CORRECT ANSWER- ✔✔computer storage device will generally store the most
data
