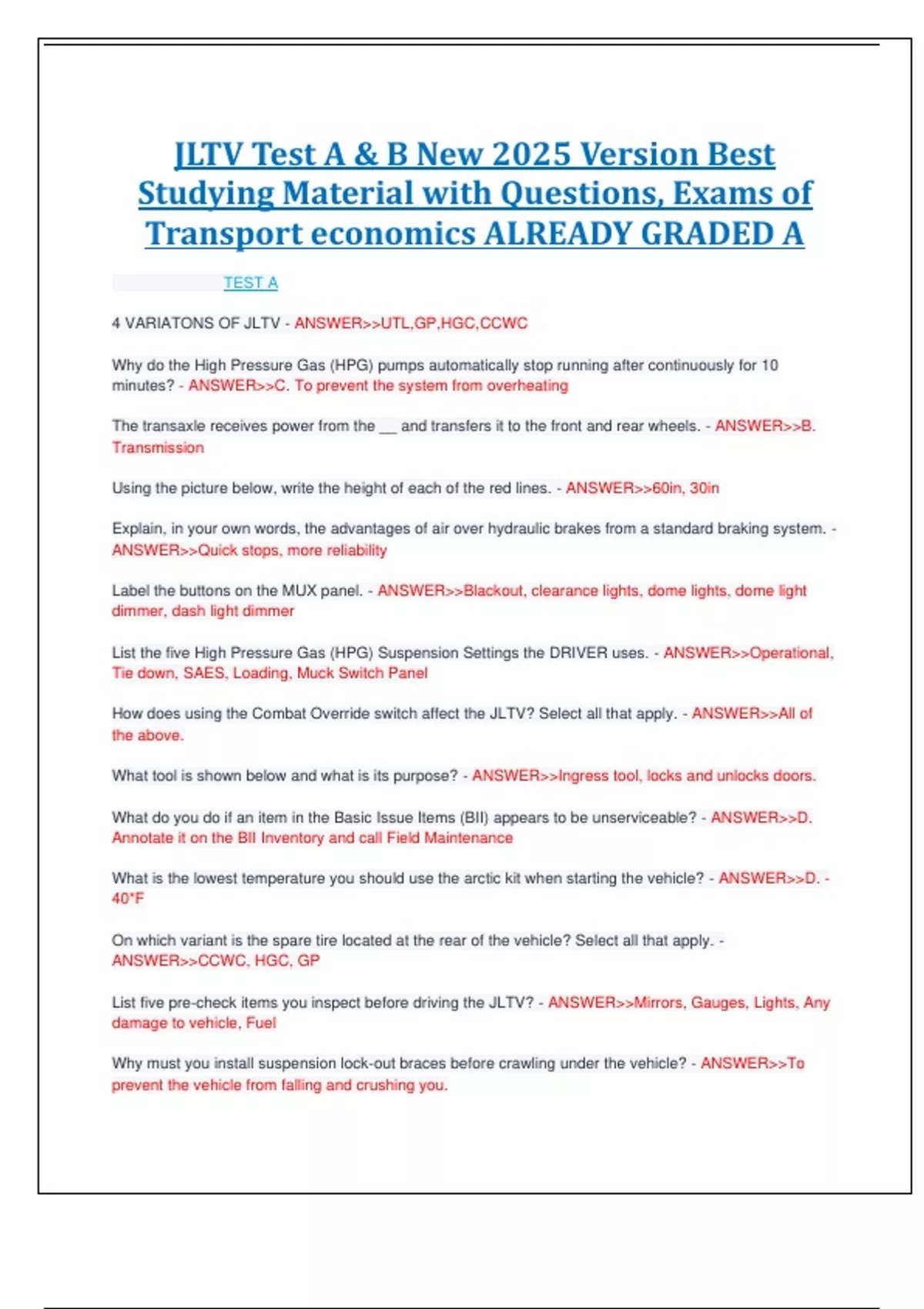

JLTV Test A & B New 2025 Version Best
Studying Material with Questions, Exams of
Transport economics ALREADY GRADED A
TEST A
4 VARIATONS OF JLTV - ANSWER>>UTL,GP,HGC,CCWC
Why do the High Pressure Gas (HPG) pumps automatically stop running after continuously for 10
minutes? - ANSWER>>C. To prevent the system from overheating
The transaxle receives power from the __ and transfers it to the front and rear wheels. - ANSWER>>B.
Transmission
Using the picture below, write the height of each of the red lines. - ANSWER>>60in, 30in
Explain, in your own words, the advantages of air over hydraulic brakes from a standard braking system. -
ANSWER>>Quick stops, more reliability
Label the buttons on the MUX panel. - ANSWER>>Blackout, clearance lights, dome lights, dome light
dimmer, dash light dimmer
List the five High Pressure Gas (HPG) Suspension Settings the DRIVER uses. - ANSWER>>Operational,
Tie down, SAES, Loading, Muck Switch Panel
How does using the Combat Override switch affect the JLTV? Select all that apply. - ANSWER>>All of
the above.
What tool is shown below and what is its purpose? - ANSWER>>Ingress tool, locks and unlocks doors.
What do you do if an item in the Basic Issue Items (BII) appears to be unserviceable? - ANSWER>>D.
Annotate it on the BII Inventory and call Field Maintenance
What is the lowest temperature you should use the arctic kit when starting the vehicle? - ANSWER>>D. -
40*F
On which variant is the spare tire located at the rear of the vehicle? Select all that apply. -
ANSWER>>CCWC, HGC, GP
List five pre-check items you inspect before driving the JLTV? - ANSWER>>Mirrors, Gauges, Lights, Any
damage to vehicle, Fuel
Why must you install suspension lock-out braces before crawling under the vehicle? - ANSWER>>To
prevent the vehicle from falling and crushing you.
, While conducting PMCS, you notice the transmission fluid has a small leak but it is not big enough to form
a drop. Classify the leak and decide if you can operate the vehicle. - ANSWER>>A. It is a Class I leak so
you can operate the vehicle.
Identify the fill locations on the following image of the JLTV engine. Write the letter of the location next to
the corresponding fill location description. - ANSWER>>A and D, G, F, E, B, C
When exiting the JLTV, which direction should the driver be facing and why? - ANSWER>>B. Facing the
JLTV so if you fall, your back hits the ground instead of your face
Braking while cornering will make the JLTV have a tendency to __. - ANSWER>>B. Push
You are navigating a left- hand turn at a high rate of speed when you feel your cargo weight shifting to the
right side of your vehicle. What actions should you take to regain your center of gravity through the turn? -
ANSWER>>D. Release the throttle and gently steer into the direction of the weight transfer.
You are approaching a 4-way stop. Without the aid of your A-driver, do you have adequate field of view to
safely navigate a left-hand turn? Why or why not? - ANSWER>>C. NO
Location terrain conditions, gross weight of the disabled vehicle, and the mire level all contribute to the
__? - ANSWER>>B. Rolling resistance
What recovery options are available if your JLTV exceeds a mire level 1? Select all that apply. -
ANSWER>>C. Like-vehicle recovery D. Seek additional recovery assistance
Which of the following conditions constitutes a Mire level 2? - ANSWER>>C. A JLTV mired at the fender
What is the first and easiest method of self-recovery for a mired JLTV? - ANSWER>>C. Attempt to drive
out of the mire
What is the rating of the JLTV winch? - ANSWER>>B. 18,000
Why must you use tow bar adapters when attaching the medium duty tow bar to the disabled JLTV? -
ANSWER>>A. The tow bar adapters allow for maneuverability of the tow vehicle during a flat tow.
While preparing for a flat tow, you connect the tow bar adapters, tow bar, set the parking brake, and
chock the wheels. Next, you turn solenoid switches T2, T3, and R1 1/4 turn clockwise. What have you
just engaged/disengaged? - ANSWER>>B. You have disengaged the transaxle and the front differential
The __ the Root Mean Squared (RMS) value. the rougher the terrain. - ANSWER>>A. Higher
Traversing a rough or uneven surface causes a vehicle to react by __the largest irregularities. -
ANSWER>>C. leaning away from
Oversteer is corrected by steering into the direction that the vehicle is spinning while ____ vehicle speed.
- ANSWER>>D. reducing
Which of the following are benefits of the JLTV independent front and rear suspension? Select all that
apply. - ANSWER>>A. Less side to side movement B. Improved ride D. Increased traction
