UCLA ECG Test WITH ANSWERS GRADED A+.

EUNICE

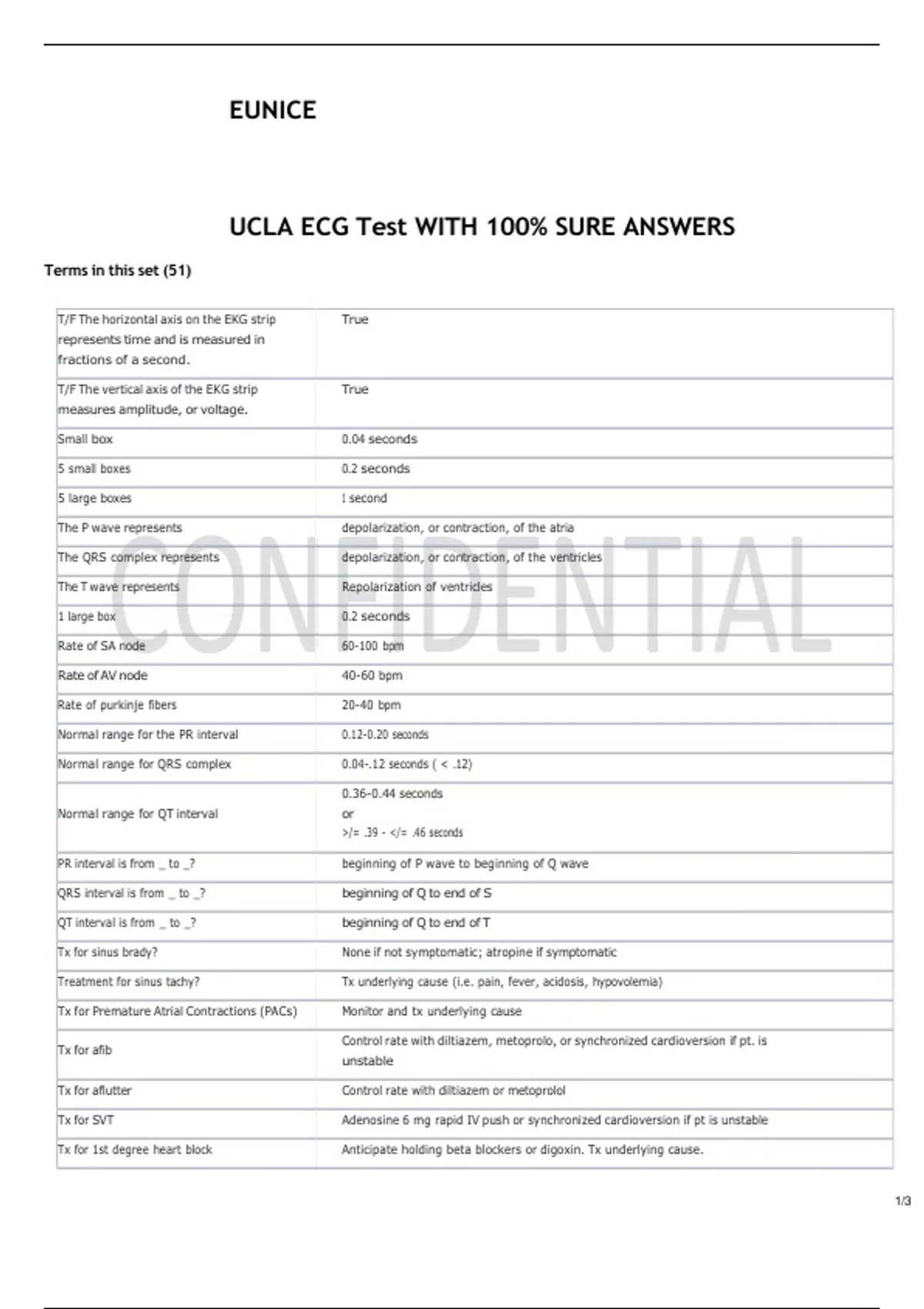

UCLA ECG Test WITH 100% SURE ANSWERS
Terms in this set (51)


T/F The horizontal axis on the EKG strip True
represents time and is measured in
fractions of a second.

T/F The vertical axis of the EKG strip True
measures amplitude, or voltage.

Small box 0.04 seconds

5 small boxes 0.2 seconds

5 large boxes 1 second

The P wave represents depolarization, or contraction, of the atria

The QRS complex represents depolarization, or contraction, of the ventricles

The T wave represents Repolarization of ventricles

1 large box 0.2 seconds

Rate of SA node 60-100 bpm

Rate of AV node 40-60 bpm

Rate of purkinje fibers 20-40 bpm

Normal range for the PR interval 0.12-0.20 seconds

Normal range for QRS complex 0.04-.12 seconds ( < .12)

0.36-0.44 seconds
Normal range for QT interval or
>/= .39 - </= .46 seconds

PR interval is from _ to _? beginning of P wave to beginning of Q wave

QRS interval is from _ to _? beginning of Q to end of S

QT interval is from _ to _? beginning of Q to end of T

Tx for sinus brady? None if not symptomatic; atropine if symptomatic

Treatment for sinus tachy? Tx underlying cause (i.e. pain, fever, acidosis, hypovolemia)

Tx for Premature Atrial Contractions (PACs) Monitor and tx underlying cause

Control rate with diltiazem, metoprolo, or synchronized cardioversion if pt. is
Tx for afib
unstable

Tx for aflutter Control rate with diltiazem or metoprolol

Tx for SVT Adenosine 6 mg rapid IV push or synchronized cardioversion if pt is unstable

Tx for 1st degree heart block Anticipate holding beta blockers or digoxin. Tx underlying cause.



1/3
