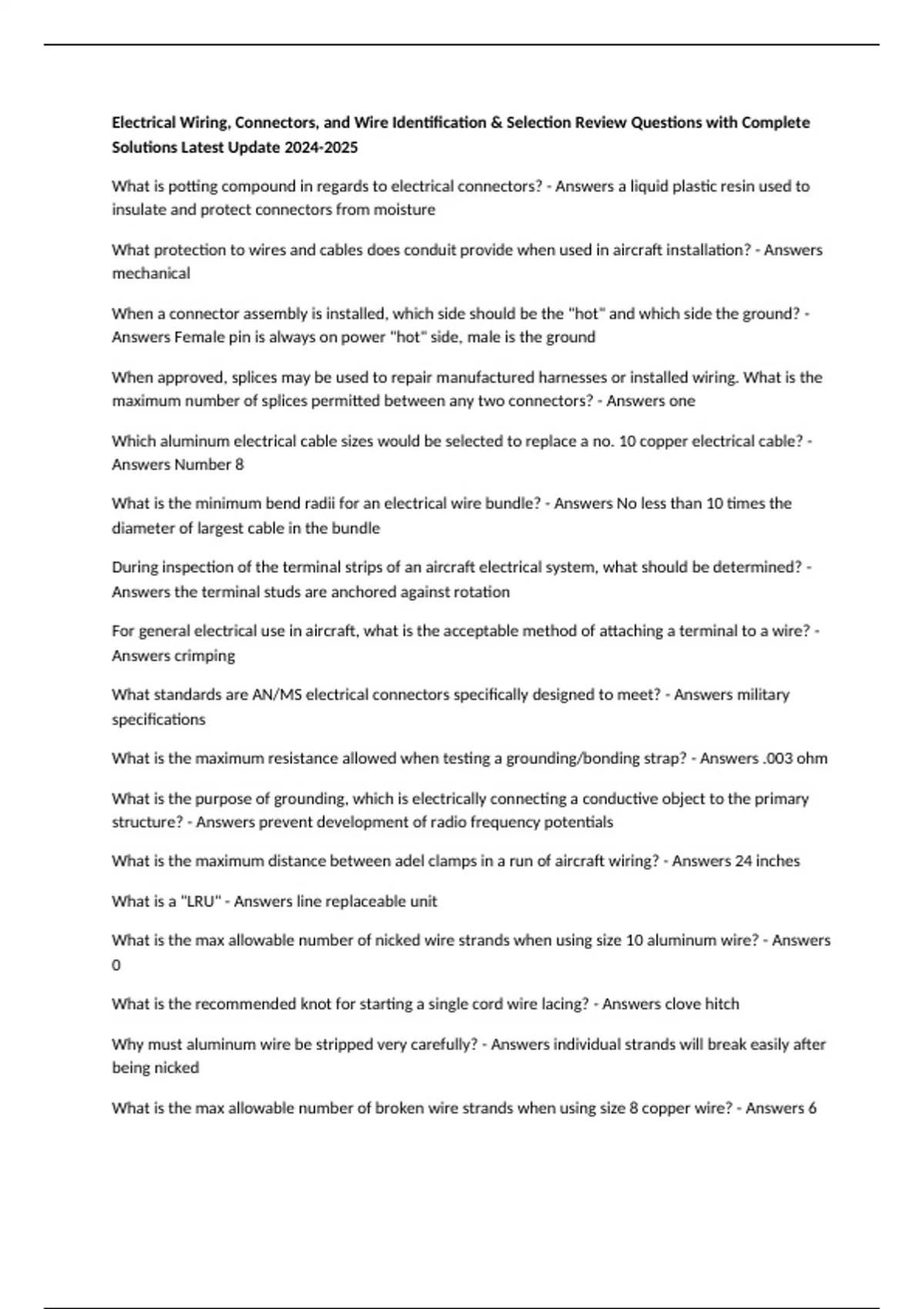

Electrical Wiring, Connectors, and Wire Identification & Selection Review Questions with Complete
Solutions Latest Update 2024-2025
What is potting compound in regards to electrical connectors? - Answers a liquid plastic resin used to
insulate and protect connectors from moisture
What protection to wires and cables does conduit provide when used in aircraft installation? - Answers
mechanical
When a connector assembly is installed, which side should be the "hot" and which side the ground? -
Answers Female pin is always on power "hot" side, male is the ground
When approved, splices may be used to repair manufactured harnesses or installed wiring. What is the
maximum number of splices permitted between any two connectors? - Answers one
Which aluminum electrical cable sizes would be selected to replace a no. 10 copper electrical cable? -
Answers Number 8
What is the minimum bend radii for an electrical wire bundle? - Answers No less than 10 times the
diameter of largest cable in the bundle
During inspection of the terminal strips of an aircraft electrical system, what should be determined? -
Answers the terminal studs are anchored against rotation
For general electrical use in aircraft, what is the acceptable method of attaching a terminal to a wire? -
Answers crimping
What standards are AN/MS electrical connectors specifically designed to meet? - Answers military
specifications
What is the maximum resistance allowed when testing a grounding/bonding strap? - Answers .003 ohm
What is the purpose of grounding, which is electrically connecting a conductive object to the primary
structure? - Answers prevent development of radio frequency potentials
What is the maximum distance between adel clamps in a run of aircraft wiring? - Answers 24 inches
What is a "LRU" - Answers line replaceable unit
What is the max allowable number of nicked wire strands when using size 10 aluminum wire? - Answers
0
What is the recommended knot for starting a single cord wire lacing? - Answers clove hitch
Why must aluminum wire be stripped very carefully? - Answers individual strands will break easily after
being nicked
What is the max allowable number of broken wire strands when using size 8 copper wire? - Answers 6
