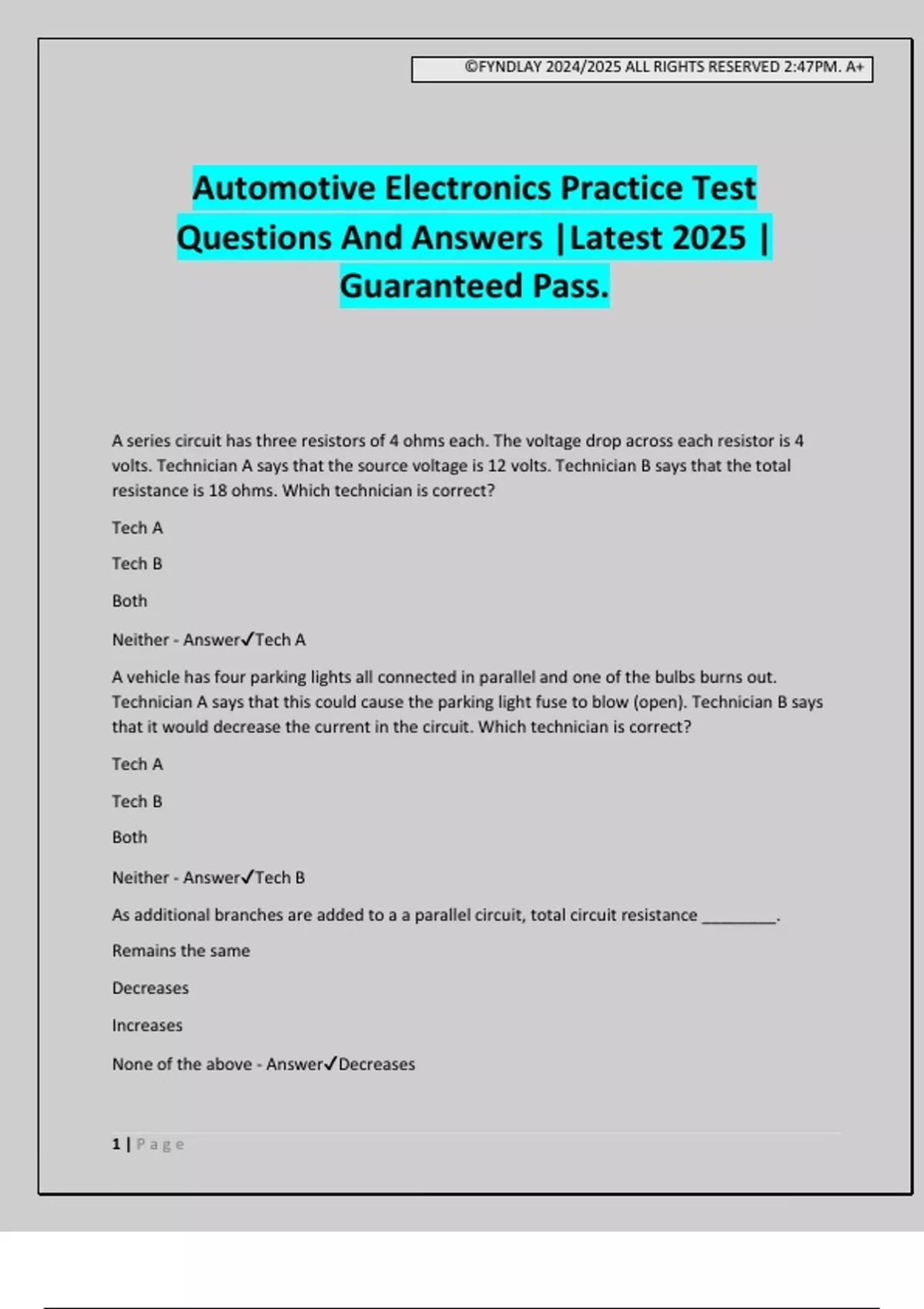

Automotive Electronics Practice Test
Questions And Answers |Latest 2025 |
Guaranteed Pass.
A series circuit has three resistors of 4 ohms each. The voltage drop across each resistor is 4
volts. Technician A says that the source voltage is 12 volts. Technician B says that the total
resistance is 18 ohms. Which technician is correct?
Tech A
Tech B
Both
Neither - Answer✔Tech A
A vehicle has four parking lights all connected in parallel and one of the bulbs burns out.
Technician A says that this could cause the parking light fuse to blow (open). Technician B says
that it would decrease the current in the circuit. Which technician is correct?
Tech A
Tech B
Both
Neither - Answer✔Tech B
As additional branches are added to a a parallel circuit, total circuit resistance ________.
Remains the same
Decreases
Increases
None of the above - Answer✔Decreases
