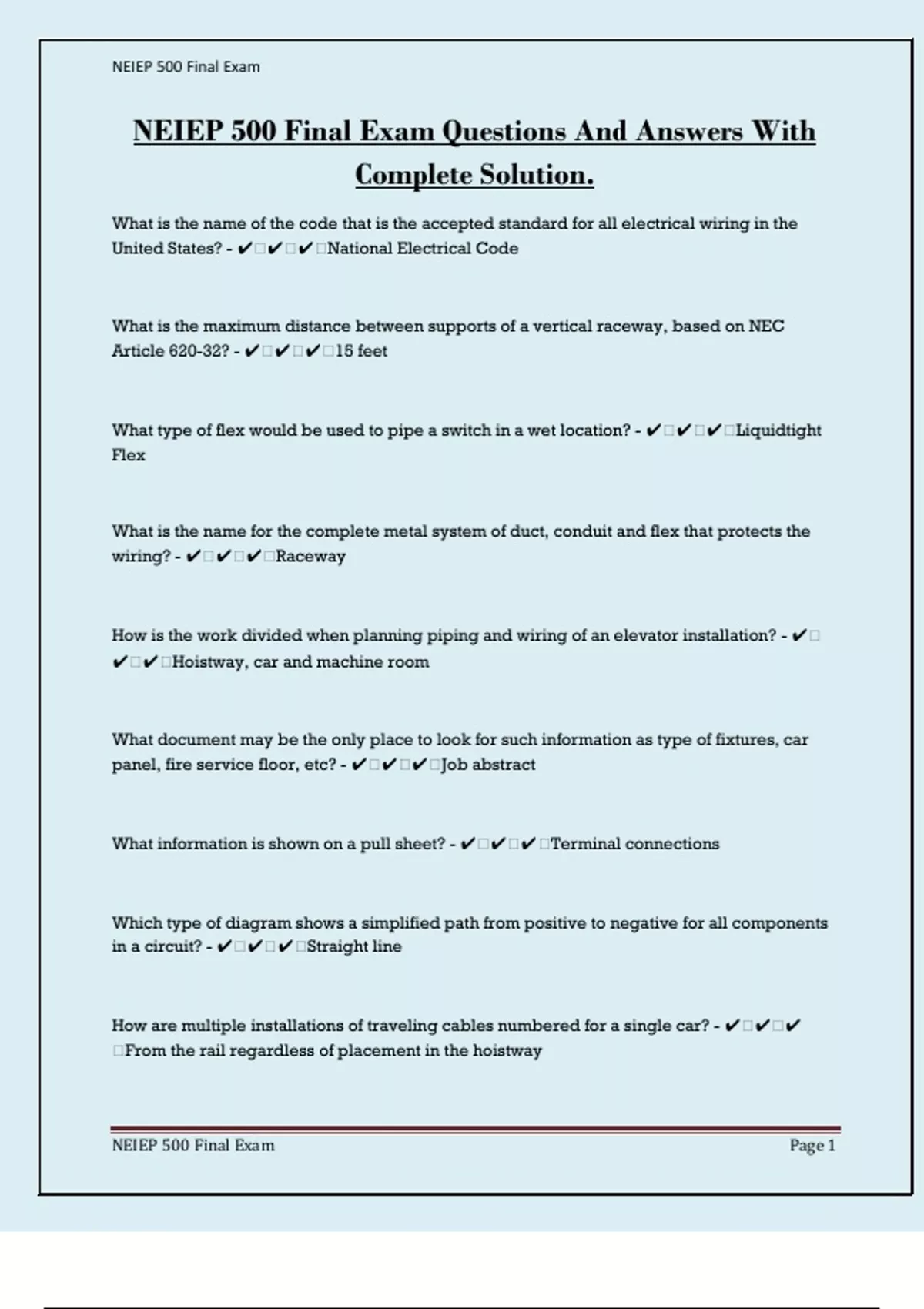

NEIEP 500 Final Exam
NEIEP 500 Final Exam Questions And Answers With
Complete Solution.
What is the name of the code that is the accepted standard for all electrical wiring in the
United States? - ✔️✔️✔️National Electrical Code
What is the maximum distance between supports of a vertical raceway, based on NEC
Article 620-32? - ✔️✔️✔️15 feet
What type of flex would be used to pipe a switch in a wet location? - ✔️✔️✔️Liquidtight
Flex
What is the name for the complete metal system of duct, conduit and flex that protects the
wiring? - ✔️✔️✔️Raceway
How is the work divided when planning piping and wiring of an elevator installation? - ✔️
✔️✔️Hoistway, car and machine room
What document may be the only place to look for such information as type of fixtures, car
panel, fire service floor, etc? - ✔️✔️✔️Job abstract
What information is shown on a pull sheet? - ✔️✔️✔️Terminal connections
Which type of diagram shows a simplified path from positive to negative for all components
in a circuit? - ✔️✔️✔️Straight line
How are multiple installations of traveling cables numbered for a single car? - ✔️✔️✔
️From the rail regardless of placement in the hoistway
NEIEP 500 Final Exam Page 1
, NEIEP 500 Final Exam
What is shown on the final layout? - ✔️✔️✔️A plan drawing and an elevation giving
dimensions
In the circuit shown, which is the common wired for the second level? - ✔️✔️✔️DC+
How are wire sizes larger than 4/0 measured? - ✔️✔️✔️In circular mils
What is the abbreviated term for current carry8ing capacity? - ✔️✔️✔️Ampacity
What is the minimum size wired for lighting circuits in an elevator installation? - ✔️✔️✔
️#14
What is the special about wire used for the interlock circuit? - ✔️✔️✔️It must be rated for
200 degrees C
What is the smallest wire that is permitted in an elevator installation? - ✔️✔️✔️#24
When bending conduit, what is the maximum number of decrees of bend allowed between
access points? - ✔️✔️✔️90 degrees
What is the reference point on the thin-wall bender for the finish line of a back to back
bend? - ✔️✔️✔️The star point
What is the total in degrees of the bends in a three-bend saddle? - ✔️✔️✔️90 degrees
You have 10' length of ¾" rigid conduit which needs to have a 90 degree bend with a 16"
stub height. With a 7" take- up, what is the distance from the end of the pipe to the mark
where the hickey arrow is aligned? - ✔️✔️✔️9 inches
NEIEP 500 Final Exam Page 2
