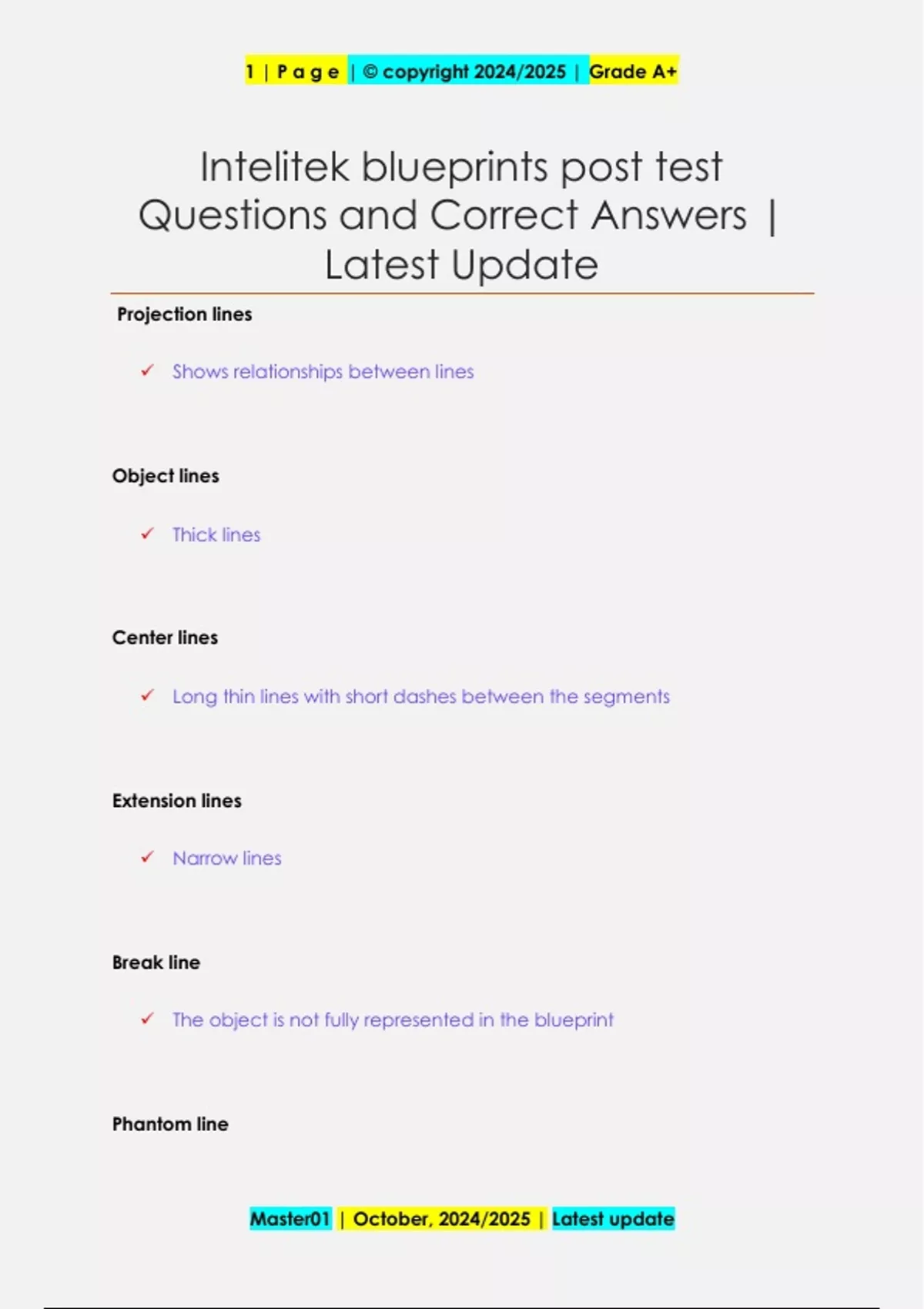

Intelitek blueprints post test
Questions and Correct Answers |
Latest Update
Projection lines
✓ Shows relationships between lines
Object lines
✓ Thick lines
Center lines
✓ Long thin lines with short dashes between the segments
Extension lines
✓ Narrow lines
Break line
✓ The object is not fully represented in the blueprint
Phantom line
Master01 | October, 2024/2025 | Latest update
, 1 | P a g e | © copyright 2024/2025 | Grade A+
✓ A line that shows an object in more than one position
Top view and right side view
✓ Views that depict a shaft shown horizontally
Top view, front view and right side view
✓ Common views depicting a three view blueprint
Top view, front view
✓ Views that depict a shaft shown vertically
Auxiliary view(s).
✓ Slanted surfaces require showing this
10:1
✓ This represents on a blueprint a small object is shown ten times larger
than it actually is.
10:10
