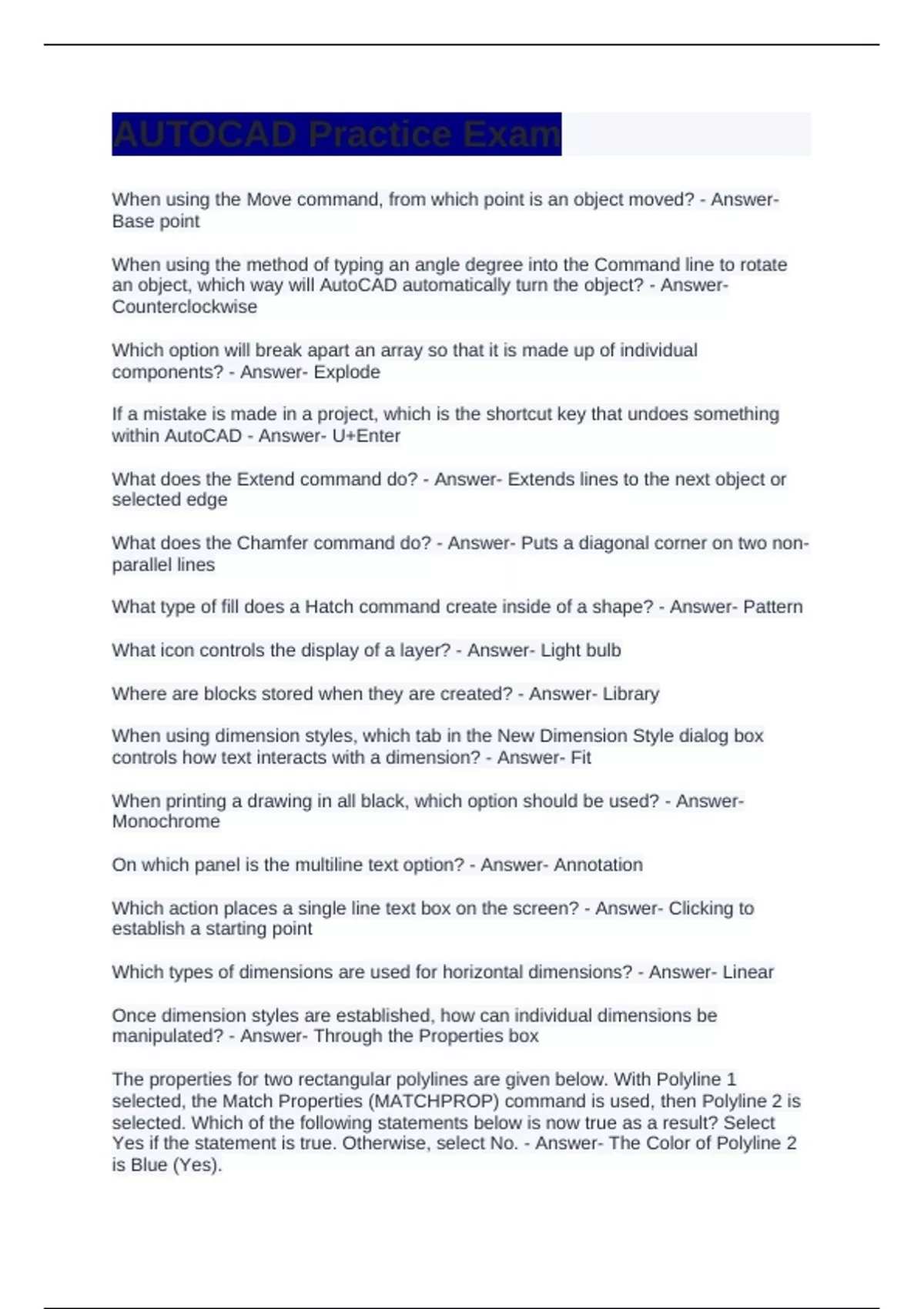

AUTOCAD Practice Exam
When using the Move command, from which point is an object moved? - Answer-
Base point
When using the method of typing an angle degree into the Command line to rotate
an object, which way will AutoCAD automatically turn the object? - Answer-
Counterclockwise
Which option will break apart an array so that it is made up of individual
components? - Answer- Explode
If a mistake is made in a project, which is the shortcut key that undoes something
within AutoCAD - Answer- U+Enter
What does the Extend command do? - Answer- Extends lines to the next object or
selected edge
What does the Chamfer command do? - Answer- Puts a diagonal corner on two non-
parallel lines
What type of fill does a Hatch command create inside of a shape? - Answer- Pattern
What icon controls the display of a layer? - Answer- Light bulb
Where are blocks stored when they are created? - Answer- Library
When using dimension styles, which tab in the New Dimension Style dialog box
controls how text interacts with a dimension? - Answer- Fit
When printing a drawing in all black, which option should be used? - Answer-
Monochrome
On which panel is the multiline text option? - Answer- Annotation
Which action places a single line text box on the screen? - Answer- Clicking to
establish a starting point
Which types of dimensions are used for horizontal dimensions? - Answer- Linear
Once dimension styles are established, how can individual dimensions be
manipulated? - Answer- Through the Properties box
The properties for two rectangular polylines are given below. With Polyline 1
selected, the Match Properties (MATCHPROP) command is used, then Polyline 2 is
selected. Which of the following statements below is now true as a result? Select
Yes if the statement is true. Otherwise, select No. - Answer- The Color of Polyline 2
is Blue (Yes).
When using the Move command, from which point is an object moved? - Answer-
Base point
When using the method of typing an angle degree into the Command line to rotate
an object, which way will AutoCAD automatically turn the object? - Answer-
Counterclockwise
Which option will break apart an array so that it is made up of individual
components? - Answer- Explode
If a mistake is made in a project, which is the shortcut key that undoes something
within AutoCAD - Answer- U+Enter
What does the Extend command do? - Answer- Extends lines to the next object or
selected edge
What does the Chamfer command do? - Answer- Puts a diagonal corner on two non-
parallel lines
What type of fill does a Hatch command create inside of a shape? - Answer- Pattern
What icon controls the display of a layer? - Answer- Light bulb
Where are blocks stored when they are created? - Answer- Library
When using dimension styles, which tab in the New Dimension Style dialog box
controls how text interacts with a dimension? - Answer- Fit
When printing a drawing in all black, which option should be used? - Answer-
Monochrome
On which panel is the multiline text option? - Answer- Annotation
Which action places a single line text box on the screen? - Answer- Clicking to
establish a starting point
Which types of dimensions are used for horizontal dimensions? - Answer- Linear
Once dimension styles are established, how can individual dimensions be
manipulated? - Answer- Through the Properties box
The properties for two rectangular polylines are given below. With Polyline 1
selected, the Match Properties (MATCHPROP) command is used, then Polyline 2 is
selected. Which of the following statements below is now true as a result? Select
Yes if the statement is true. Otherwise, select No. - Answer- The Color of Polyline 2
is Blue (Yes).
