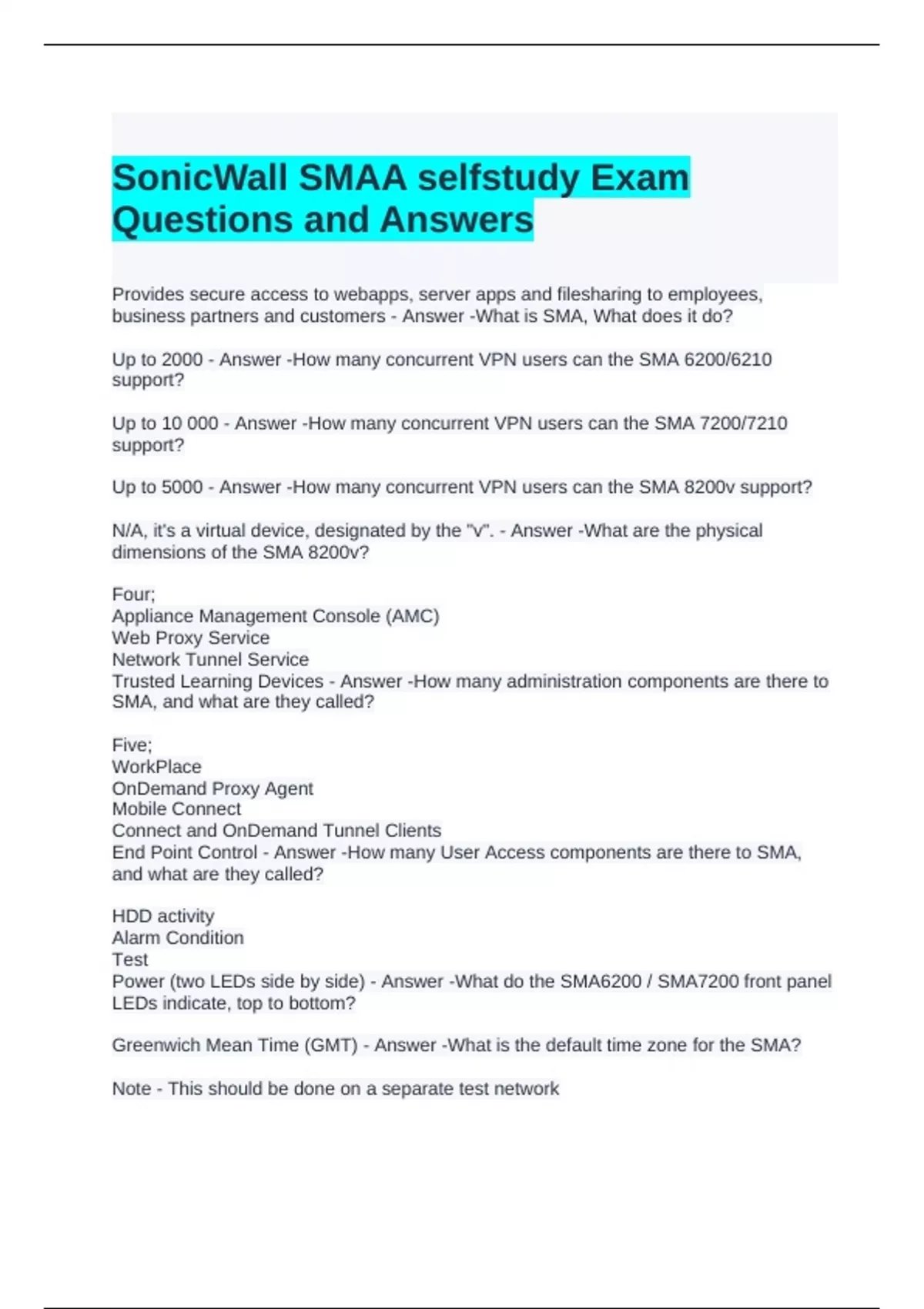

SonicWall SMAA selfstudy Exam
Questions and Answers
Provides secure access to webapps, server apps and filesharing to employees,
business partners and customers - Answer -What is SMA, What does it do?
Up to 2000 - Answer -How many concurrent VPN users can the SMA 6200/6210
support?
Up to 10 000 - Answer -How many concurrent VPN users can the SMA 7200/7210
support?
Up to 5000 - Answer -How many concurrent VPN users can the SMA 8200v support?
N/A, it's a virtual device, designated by the "v". - Answer -What are the physical
dimensions of the SMA 8200v?
Four;
Appliance Management Console (AMC)
Web Proxy Service
Network Tunnel Service
Trusted Learning Devices - Answer -How many administration components are there to
SMA, and what are they called?
Five;
WorkPlace
OnDemand Proxy Agent
Mobile Connect
Connect and OnDemand Tunnel Clients
End Point Control - Answer -How many User Access components are there to SMA,
and what are they called?
HDD activity
Alarm Condition
Test
Power (two LEDs side by side) - Answer -What do the SMA6200 / SMA7200 front panel
LEDs indicate, top to bottom?
Greenwich Mean Time (GMT) - Answer -What is the default time zone for the SMA?
Note - This should be done on a separate test network
, Note serial # and Authentication Code
Mount the device, connect cables
Turn it on and begin configuration
Connect to the box from internal net, behind firewall
Run the setup wizard
Register the SMA box on MySonicWall - Answer -What are the steps for installing a
SMA appliance?
8443 - Answer -What port does the Setup Wizard use, by default?
Moving the date and time backwards from the current will disable ALL services and the
licenses will need to be reinstalled. - Answer -After your initial setup, the customer
wants you to set the date and time on the SMA to yesterday at 12pm due to some
proprietary systems they are running.
What will happen if you oblige the customer?
192.168.0.10 - Answer -What IP address does the Setup Wizard default to on initial
setup?
TCP 443 is required.
TCP 80 is optional
UDP 4500 is required for ESP mode. - Answer -What ports must be open for you to
install a SMA (disregarding the use of the serial port)?
The Serial Setup Tool can be run at any time, but it will overwrite all current config.
It may be useful in situations where 192.168.0.10 is already in use on the network. -
Answer -When can you run the Serial Setup Tool, and what happens if you do?
The root password of the SMA box
The name of the SMA box
What IP the customer wants the SMA box on
Routing mode
FQDN for both the SMA box and the AMC server
An internal DNS Domain name
Primary internal DNS server address
Internal WINS server IP
Server name and login info for any authentication servers
Any IP addresses for any network tunnel clients
Serial # and Authentication code for the SMA box - Answer -What information should
you already have before starting installation of the SMA?
Super Admin
Security Admin
System Admin - Answer -What preconfigured Admin roles are there?
