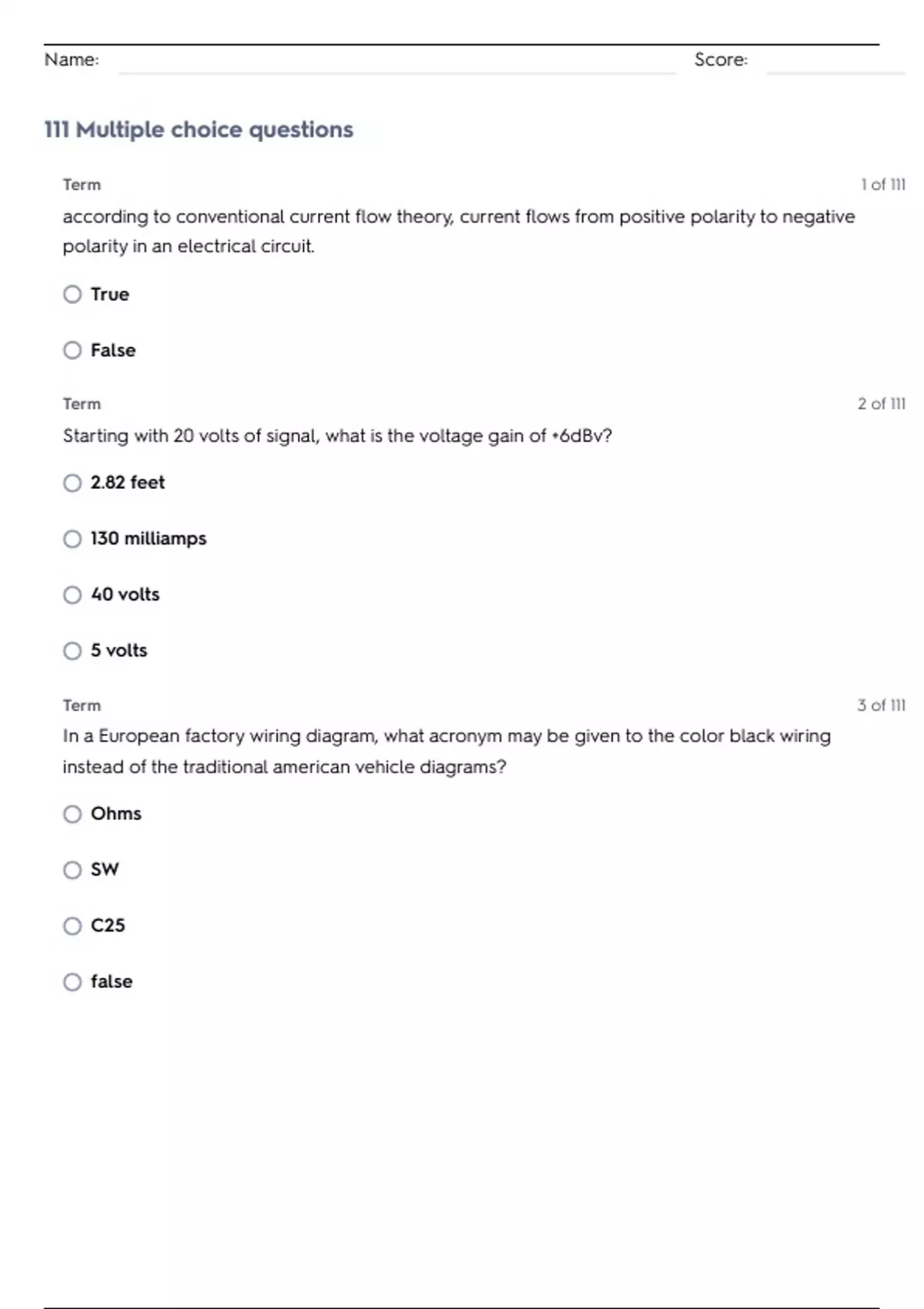

Name: Score:
111 Multiple choice questions
Term 1 of 111
according to conventional current flow theory, current flows from positive polarity to negative
polarity in an electrical circuit.
True
False
Term 2 of 111
Starting with 20 volts of signal, what is the voltage gain of +6dBv?
2.82 feet
130 milliamps
40 volts
5 volts
Term 3 of 111
In a European factory wiring diagram, what acronym may be given to the color black wiring
instead of the traditional american vehicle diagrams?
Ohms
SW
C25
false
,Definition 4 of 111
sealed or vented box
Harmonics
50<EBP <100
741 Op Amp 8-pin DIP
EBP > 100
Term 5 of 111
Capacitors
The N material
The diameter of the bolt (in mm)
act inverse of resistors in series/parallel
act like resistors in series/parallel
Term 6 of 111
According to the MECP Master Installation technician study guide, the principal safety precaution
necessary to work on the high voltage system in hybrid gas electric vehicles is OSHA approved
safety glasses with UV lens for filtering electrical arcing.
True
False
Term 7 of 111
what is the volume displacement of a 4in round vent that is 10 long?
.0727 cubic feet
14.16 liters
Solder and Tape
To deter theft
,Definition 8 of 111
1 TC = R x C (Resistance x Capacitance)
Can be placed on a relay to protect transistorized outputs on an ECU.
Loudspeaker efficiency is usually around
Time constant formula for capacitors.
Speed of sound in air @ 20 degrees C
Term 9 of 111
If your taking a measurement of the ripple in an alternator output, what unit of measure would you
be expecting to see on a DMM or digital oscilloscope?
A pumice-based cleaner
To deter theft
X, K, Ka bands
AC millivolts
Term 10 of 111
If using a table-mounted router with a 3/4'' bearing on a 1/2'' flush trim router bit to copy a
template shape what amount of oversize on the copied work piece will result from copying the
original template shape?
DC voltage measurement below 10 volts
True
1/8''
False
, Term 11 of 111
When a machine bolt is referred to as M10x1.5, the 10 refers to what?
2.82 feet
A Dual UTP of four wires
The diameter of the bolt (in mm)
312.5 watts/channel
Term 12 of 111
Mecp recommended practice is that a high pass filter for midrange and tweeter speakers should
be selected at least one octave above the speakers resonant frequency to minimize distortion.
True
False
Definition 13 of 111
are linearly related
suspension
MOSFETS
50<EBP <100
Harmonics
