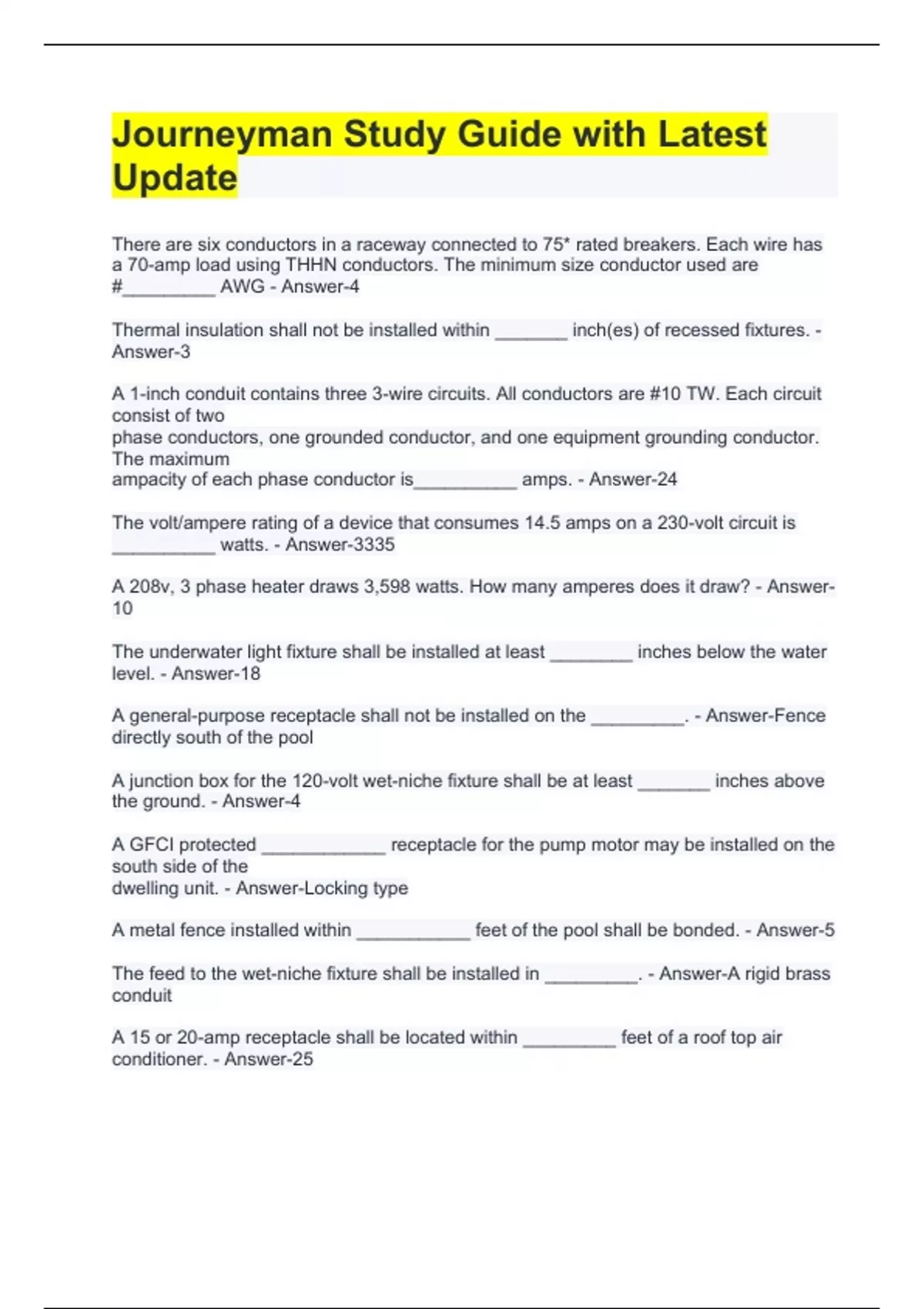

Journeyman Study Guide with Latest Update

There are six conductors in a raceway connected to 75* rated breakers. Each wire has a 70-amp load using THHN conductors. The minimum size conductor used are #_________ AWG - Answer-4 Thermal insulation shall not be installed within _______ inch(es) of recessed fixtures. - Answer-3 A 1-inch conduit contains three 3-wire circuits. All conductors are #10 TW. Each circuit consist of two phase conductors, one grounded conductor, and one equipment grounding conductor. The maximum ampacity of each phase conductor is__________ amps. - Answer-24 The volt/ampere rating of a device that consumes 14.5 amps on a 230-volt circuit is __________ watts. - Answer-3335 A 208v, 3 phase heater draws 3,598 watts. How many amperes does it draw? - Answer-10 The underwater light fixture shall be installed at least ________ inches below the water level. - Answer-18 A general-purpose receptacle shall not be installed on the _________. - Answer-Fence directly south of the pool A junction box for the 120-volt wet-niche fixture shall be at least _______ inches above the ground. - Answer-4 A GFCI protected ____________ receptacle for the pump motor may be installed on the south side of the dwelling unit. - Answer-Locking type A metal fence installed within ___________ feet of the pool shall be bonded. - Answer-5 The feed to the wet-niche fixture shall be installed in _________. - Answer-A rigid brass conduit A 15 or 20-amp receptacle shall be located within _________ feet of a roof top air conditioner. - Answer-25
