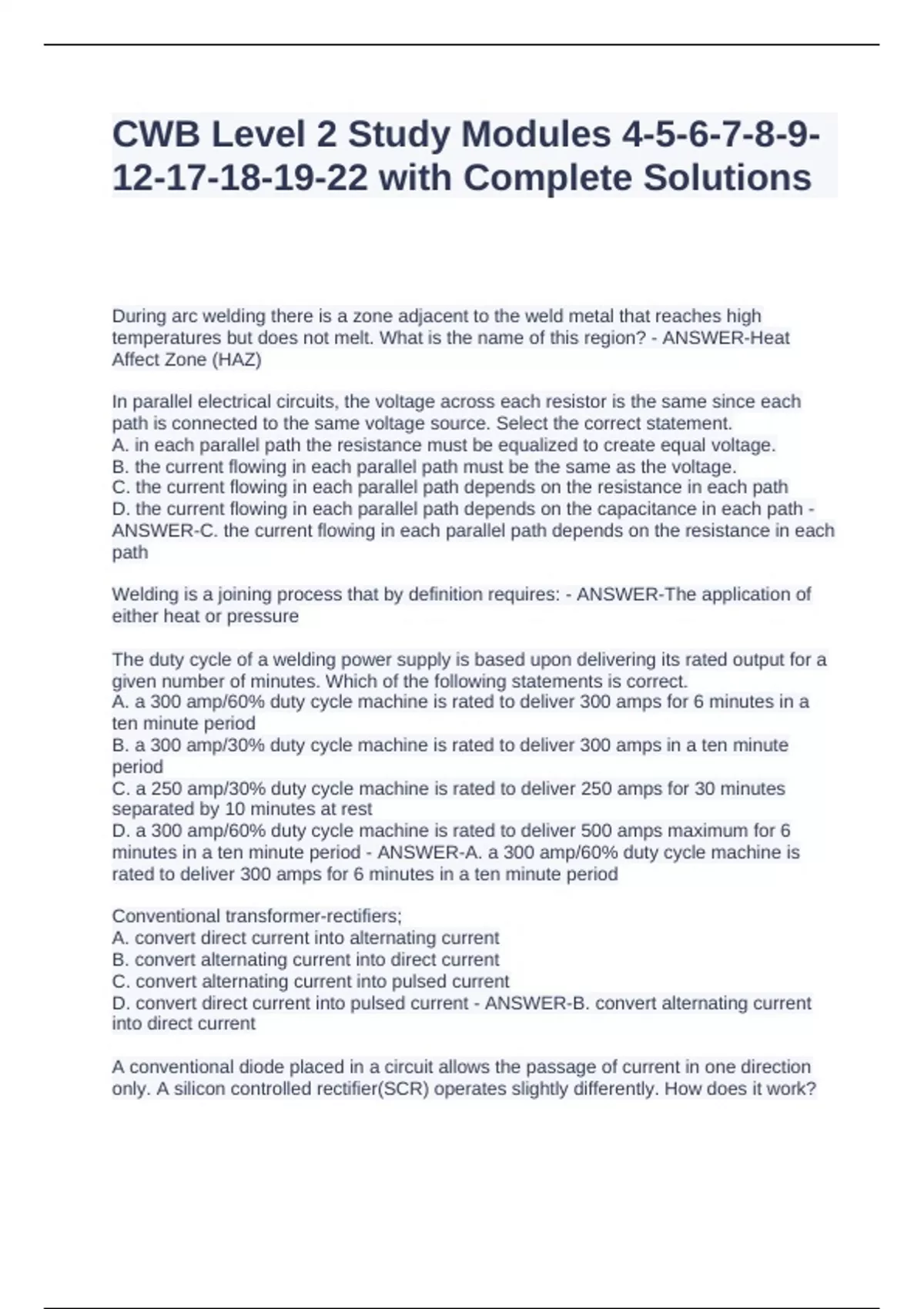

CWB Level 2 Study Modules 4-5-6-7-8-9-
12-17-18-19-22 with Complete Solutions


During arc welding there is a zone adjacent to the weld metal that reaches high
temperatures but does not melt. What is the name of this region? - ANSWER-Heat
Affect Zone (HAZ)

In parallel electrical circuits, the voltage across each resistor is the same since each
path is connected to the same voltage source. Select the correct statement.
A. in each parallel path the resistance must be equalized to create equal voltage.
B. the current flowing in each parallel path must be the same as the voltage.
C. the current flowing in each parallel path depends on the resistance in each path
D. the current flowing in each parallel path depends on the capacitance in each path -
ANSWER-C. the current flowing in each parallel path depends on the resistance in each
path

Welding is a joining process that by definition requires: - ANSWER-The application of
either heat or pressure

The duty cycle of a welding power supply is based upon delivering its rated output for a
given number of minutes. Which of the following statements is correct.
A. a 300 amp/60% duty cycle machine is rated to deliver 300 amps for 6 minutes in a
ten minute period
B. a 300 amp/30% duty cycle machine is rated to deliver 300 amps in a ten minute
period
C. a 250 amp/30% duty cycle machine is rated to deliver 250 amps for 30 minutes
separated by 10 minutes at rest
D. a 300 amp/60% duty cycle machine is rated to deliver 500 amps maximum for 6
minutes in a ten minute period - ANSWER-A. a 300 amp/60% duty cycle machine is
rated to deliver 300 amps for 6 minutes in a ten minute period

Conventional transformer-rectifiers;
A. convert direct current into alternating current
B. convert alternating current into direct current
C. convert alternating current into pulsed current
D. convert direct current into pulsed current - ANSWER-B. convert alternating current
into direct current

A conventional diode placed in a circuit allows the passage of current in one direction
only. A silicon controlled rectifier(SCR) operates slightly differently. How does it work?

,A. an SCR conducts current in both directions until turned on and current flow is then
prevented
B. an SCR is non-conductive until turned onland then allows current to flow in both
directions
C. an SCR is non-conductive until turned on, allowing current to flow in one direction
only until the flow of current stops
D. an SCR is a unique rectifying device which allows only alternating c1:1rrent to flow
until turned off - ANSWER-C. an SCR is non-conductive until turned on, allowing current
to flow in one direction only until the flow of current stops

What is the term for voltage measured across the output terminals of a welding
machine when no current is being drawn?
A. diode voltage
B. operating voltage
C. open circuit voltage
D. terminal voltage - ANSWER-C. open circuit voltage

A 60% duty cycle means that the power supply can deliver its rated output for:
A 60% of the rated output only
B. 60% over the rated output followed by 4 minutes at rest
C. 6 minutes at rest followed by 4 minutes at rated output
D. 6 minutes at rated output followed by 4 minutes at rest - ANSWER-D. 6 minutes at
rated output followed by 4 minutes at rest

The DC output of a single phase power supply can be "ripply" and does not produce
the friendliest DC arc. How is this problem overcome?
A. single phase power supplies produce the smoothest DC of all common machines
B. a third transformer is added to the output circuit to filter out instability
C. a capacitor or capacitor bank is added to the output circuit
D. a 'dual' rectifier bridge is used to filter the transformer output - ANSWER-C. a
capacitor or capacitor bank is added to the output circuit

One of the simplest ways of controlling the output of a welding transformer is to change
the efficiency of coupling between the primary and secondary coils. How can this be
done?
A slide a piece of wood between the primary and the secondary coils
B. design the transformer with either a moving core or moving primary coils
C. design the transformer with a number of taps to select different output curves
D. use the timed firing of SCR's to control total conduction time - ANSWER-B. design
the transformer with either a moving core or moving primary coils

When choosing between AC and DC output;
A. the process generally determines the type of current
B. high current output machines are always both AC/DC
C. DC is generally used for very high output applications

,D. most supplies are equipped with constant voltage/constant current options -
ANSWER-A. the process generally determines the type of current

Which of the following metals has the lowest electrical resistivity?
A aluminum
B. tungsten
C. copper
D. iron - ANSWER-C. copper

What is the purpose of an inverter?
A. to convert AC current to DC current of the same frequency
B. to convert DC current to high frequency AC current
C. to convert AC current to DC current
D. to convert electrode positive to electrode negative - ANSWER-B. to convert DC
current to high frequency AC current


What voltage is required to cause 5 amps of current to flow through a resistance of 22
ohms?
A. 110 volts
B. 0.22 volts
C. 4.4 volts
D. 5 volts - ANSWER-A. 110 volts

What type of output is usually required for Gas Tungsten Arc Welding?
A. constant voltage
B. high frequency
C. low power factor
D. low duty cycle
E. constant current - ANSWER-E. constant current

How is power flow analyzed in alternating current circuits?
A. AC circuits can be evaluated the same as DC circuits when RMS values of voltage
and current are used
B. when analysing AC circuits, inductive and capacitive reactance must be included
C. average current in an AC circuit is zero and therefore no work is done
D. the peaks and valleys of sine wave curves balance to zero with the load - ANSWER-
C. average current in an AC circuit is zero and therefore no work is done

Which of the following methods is commonly used to control the output of a
transformer?
A. an auxiliary power supply which feeds the secondary as required
B. a saturable reactor in series with the output
C. resistance placed in parallel with the primary of the transformer
D. taps on the secondary of the transformer - ANSWER-D. taps on the secondary of the
transformer

, A transformer type welding power source without a rectifier outputs what type of
current?
A. direct current
B. alternating current
C. high frequency current
D. pulsed direct current - ANSWER-B. alternating current

When gas tungsten arc welding steels electrode polarity is most commonly;
A. electrode positive
B. electrode negative
C. alternating current
D. electrode square wave - ANSWER-B. electrode negative

A disadvantage of SCR control is that the output is very 'choppy'. How is the output
made more suitable for welding?
A. the output is smoothed out by the addition of capacitors
B. the large inductor or choke will be added to the circuit
C. the output from an SCR bridge is smooth enough for welding purposes
D. the diodes added to all SCR controlled machines to prevent "choppy" output -
ANSWER-A. the output is smoothed out by the addition of capacitor

Gas tungsten arc and plasma arc welding power sources are commonly designed with
high frequency units. What does the high frequency unit do?
A. increases heat input due to the increased frequency which increases the total time
at high current flow
B. outputs high voltage, low current to create and maintain a stable conductive path for
the flow of power
C. decreases the cleaning action created by electrode negative polarity present in
alternating current arcs
D. outputs balanced current flow between electrode positive and electrode negative
half cycles - ANSWER-B. outputs high voltage, low current to create and maintain a
stable conductive path for the flow of power

In which direction do the electrons flow in an electrical arc? From anode to cathode, or
cathode to anode? - ANSWER-Cathode to anode.

In arc welding, the electric arc is intensely hot with temperatures exceeding: -
ANSWER-30000°C

Which arc welding process has the highest arc efficiency? And what is its
approximate value? - ANSWER-Submerged arc welding. 90 top 95%.

How do the arc voltage and arc stiffness change when the arc length is increased? -
ANSWER-Arc voltage increases and arc stiffness decreases.
