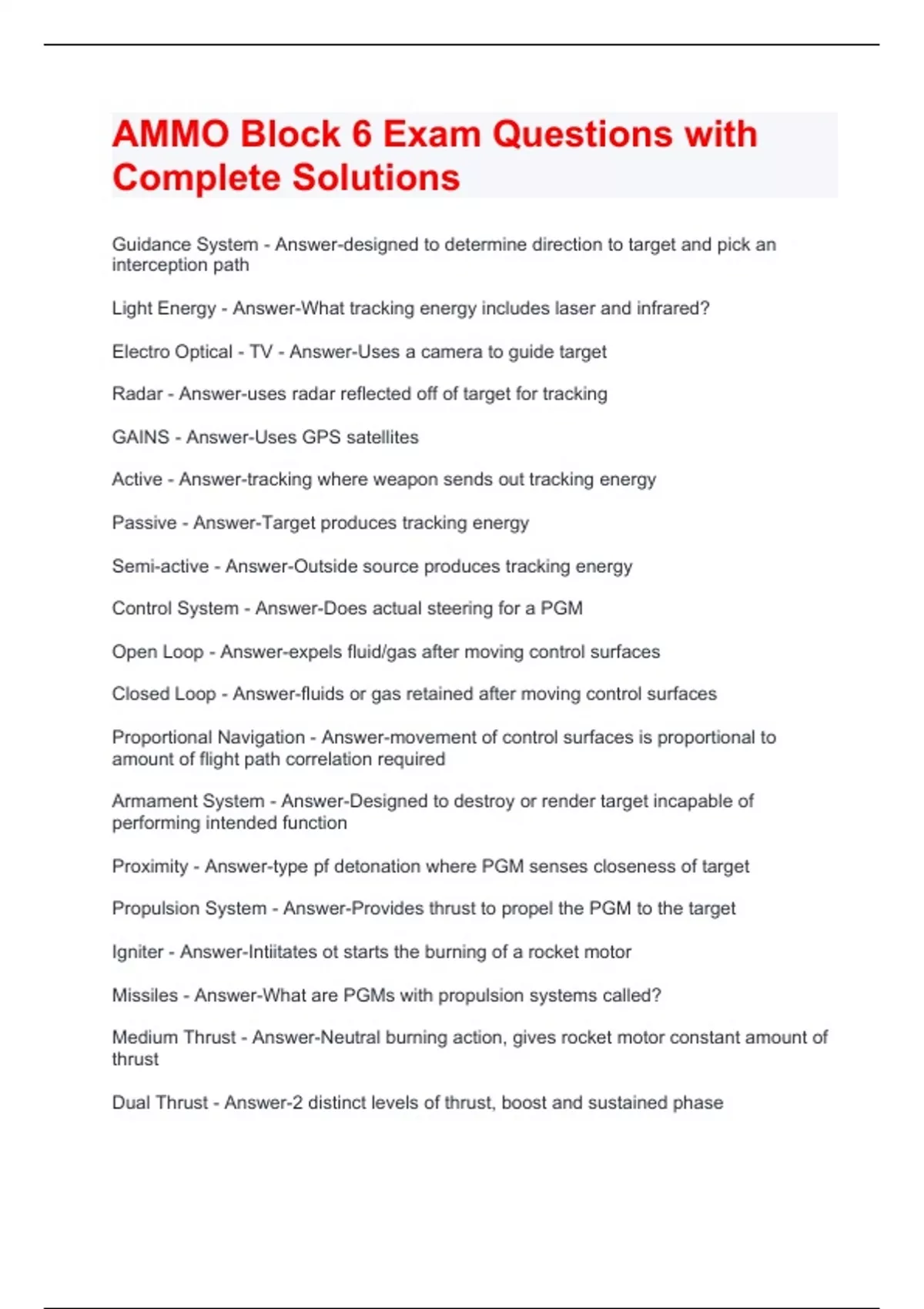

AMMO Block 6 Exam Questions with
Complete Solutions
Guidance System - Answer-designed to determine direction to target and pick an
interception path
Light Energy - Answer-What tracking energy includes laser and infrared?
Electro Optical - TV - Answer-Uses a camera to guide target
Radar - Answer-uses radar reflected off of target for tracking
GAINS - Answer-Uses GPS satellites
Active - Answer-tracking where weapon sends out tracking energy
Passive - Answer-Target produces tracking energy
Semi-active - Answer-Outside source produces tracking energy
Control System - Answer-Does actual steering for a PGM
Open Loop - Answer-expels fluid/gas after moving control surfaces
Closed Loop - Answer-fluids or gas retained after moving control surfaces
Proportional Navigation - Answer-movement of control surfaces is proportional to
amount of flight path correlation required
Armament System - Answer-Designed to destroy or render target incapable of
performing intended function
Proximity - Answer-type pf detonation where PGM senses closeness of target
Propulsion System - Answer-Provides thrust to propel the PGM to the target
Igniter - Answer-Intiitates ot starts the burning of a rocket motor
Missiles - Answer-What are PGMs with propulsion systems called?
Medium Thrust - Answer-Neutral burning action, gives rocket motor constant amount of
thrust
Dual Thrust - Answer-2 distinct levels of thrust, boost and sustained phase
, High Trust - Answer-great velocity but sacrifices range or distance capabilities
MAU-169 - Answer-What guidance section does the GBU-12 and GBU-10 use?
WGU-39 - Answer-What guidance section does the GBU-24 use?
GBU-12 - Answer-GBU with MK82 and airfoil MXU-650
GBU-10 - Answer-uses Mk84 or BLU109 and airfoil MXU-651
GBU-24 - Answer-Uses Mk-84 or BLU-109, Airfoil BSU-84
ADG-769 - Answer-What adapter is used for the BLU-109 with the GBU-24?
Wing Assembly - Answer-Provides the lift and stability for an airfoil group
Forward Adapter - Answer-mounts on nose of warhead, connection point for guidance
section
Spanner Bolt - Answer-Secures forward adapter to nose of warhead
TTU-595E - Answer-Used for field testing of the guidance section of laser guided bombs
Laser Optic test Head - Answer-5 laser optics that provide simulated targets
warheads - Answer-What is the main difference between separate JDAMS?
Tail Assembly - Answer-contains all of the accessory electronics and hardware for
guidance and control of the JDAM
Guidance Control Unit (GCU) - Answer-contains mission computer, GPS, and controls
all functions that guide the bomb
Tail Actuated System (TAS) - Answer-4 fins in rear,3 that move. Includes GPS antenna
on AFT
Umbillical Connector - Answer-What is the electrical connecter between JDAM and the
aircraft?
Aerosurfaces/Strakes - Answer-Provides lift and maneuverability for a JDAM during
flight
Umbilical Cover - Answer-positions umbilical connecter for specific aircraft and protects
wire harness from damage
