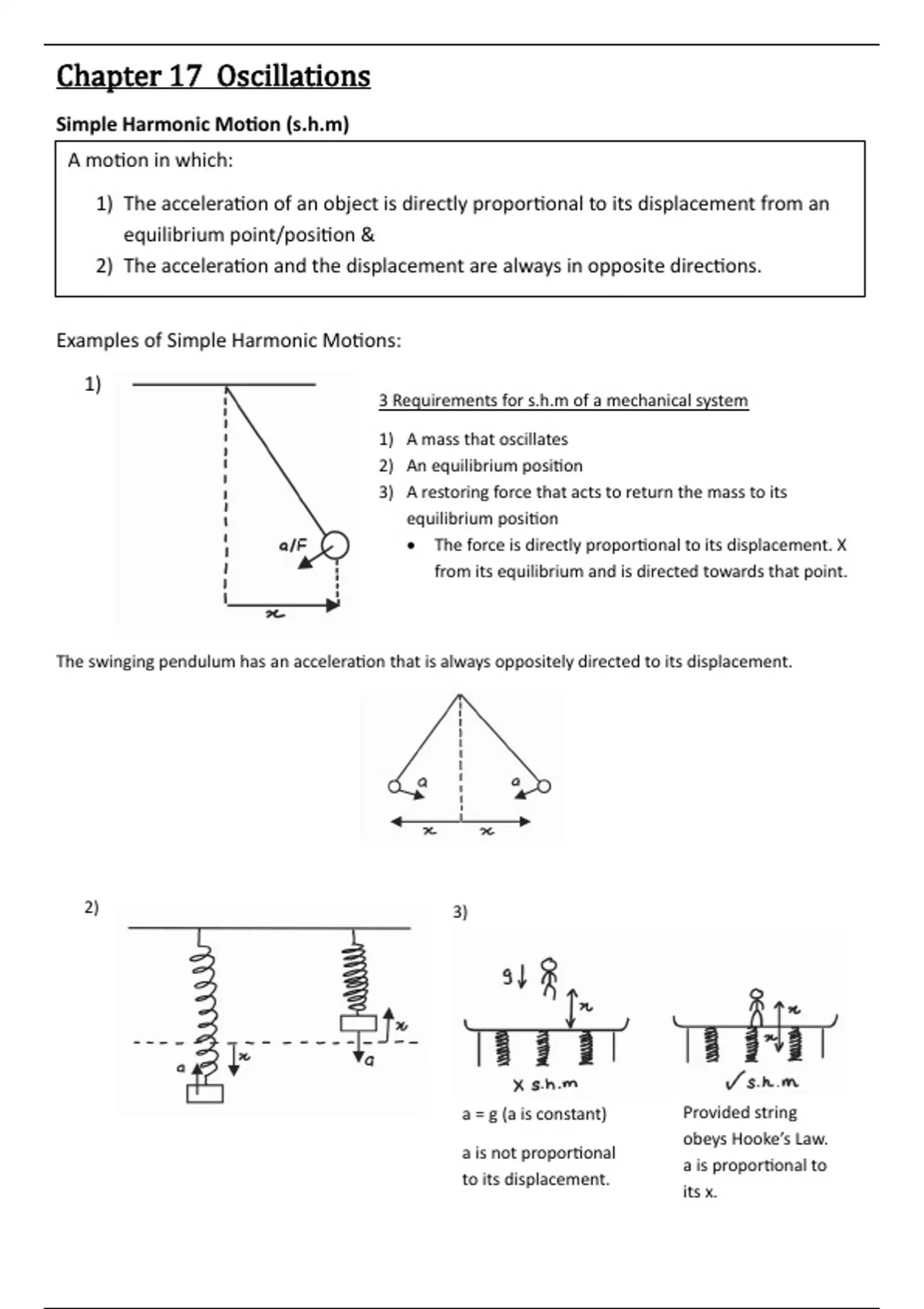

Chapter 17 Oscillations
Simple Harmonic Motion (s.h.m)
A motion in which:
1) The acceleration of an object is directly proportional to its displacement from an
equilibrium point/position &
2) The acceleration and the displacement are always in opposite directions.


Examples of Simple Harmonic Motions:
1)
3 Requirements for s.h.m of a mechanical system

1) A mass that oscillates
2) An equilibrium position
3) A restoring force that acts to return the mass to its
equilibrium position
• The force is directly proportional to its displacement. X
from its equilibrium and is directed towards that point.



The swinging pendulum has an acceleration that is always oppositely directed to its displacement.




2) 3)




a = g (a is constant) Provided string
obeys Hooke’s Law.
a is not proportional
a is proportional to
to its displacement.
its x.

,Angular Frequency
Complete oscillation (a cycle of s.h.m) = 2π rad

Angular Frequency
𝟐𝝅 Unit: rad s-1
𝝎 = 𝟐𝝅𝒇 𝝎=
𝑻

ω = angular frequency (rad s-1)

f = frequency (Hz)

T = period (1 complete oscillation) (s)



The Defining Equation for Simple Harmonic Motion


𝒂 = −𝝎𝟐 𝒙


a = acceleration of an object moving in s.h.m

x = displacement from the equilibrium

ω = angular frequency



From the equation:

1) 𝑎 ∝ 𝑥
▪ The constant of proportionality is ω2.

 Acceleration is directly proportional to displacement.



2) − 𝑠𝑖𝑔𝑛
▪ Shows when object is displaced to the right, the direction of its acceleration is to the left and
vice versa.

 Acceleration is always directed towards the equilibrium position. (in the opposite direction to the
displacement)

, Example of Simple Harmonic Motion
1) Simple pendulum
2) Spring-mass system
3) Oscillations of liquid columns

Derivation of equations for the period of certain examples of s.h.m

Steps:

1. Use Newton 2nd Law
2. Relate a with x
3. Sign direction
4. Proportionality



1) Simple Pendulum

1.




 Restoring force (towards equilibrium point)
𝐹 = 𝑊𝑠𝑖𝑛𝜃
= 𝑚𝑔𝑠𝑖𝑛𝜃


If  is small,
𝑥
𝑠𝑖𝑛 𝜃 ≃ 𝐹 = 𝑚𝑔𝑠𝑖𝑛𝜃
𝑙


𝑥
𝐹 = 𝑚𝑔 ( )
𝑙


2 & 3. Since F and x are in opposite directions,
𝑥
𝑚𝑎 = −𝑚𝑔 ( )
𝑙
𝑔
𝑎 = −( )𝑥
𝑙
-ve A constant
a is opposite to x 𝑎 ∝ 𝑥
# s.h.m motion
