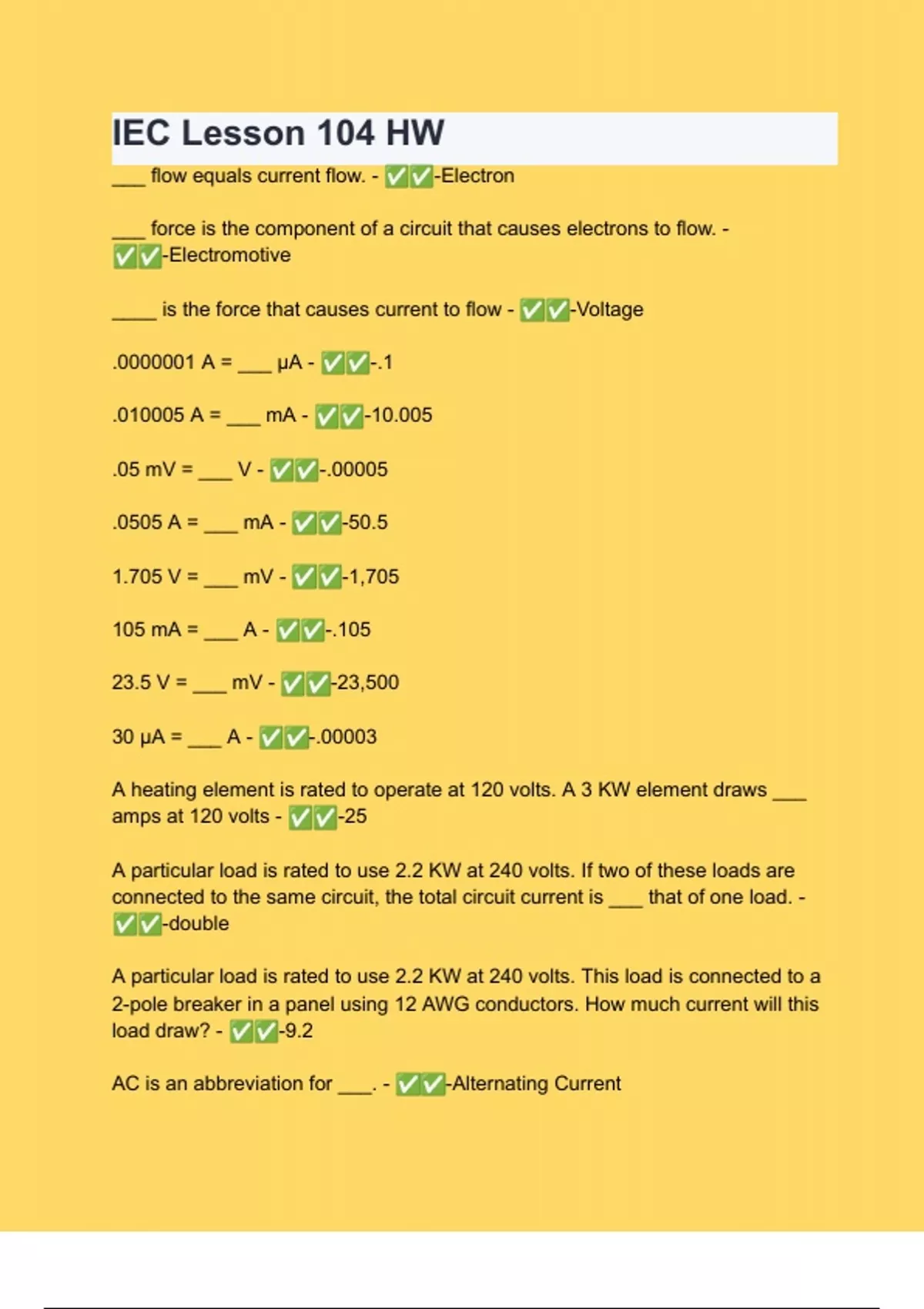

IEC Lesson 104 HW
___ flow equals current flow. - ✅✅-Electron
✅✅
___ force is the component of a circuit that causes electrons to flow. -
-Electromotive
____ is the force that causes current to flow - ✅✅-Voltage
.0000001 A = ___ µA -✅✅-.1
.010005 A = ___ mA - ✅✅-10.005
.05 mV = ___ V - ✅✅-.00005
.0505 A = ___ mA - ✅✅-50.5
1.705 V = ___ mV - ✅✅-1,705
105 mA = ___ A - ✅✅-.105
23.5 V = ___ mV - ✅✅-23,500
30 µA = ___ A - ✅✅-.00003
✅✅
A heating element is rated to operate at 120 volts. A 3 KW element draws ___
amps at 120 volts - -25
A particular load is rated to use 2.2 KW at 240 volts. If two of these loads are
✅✅
connected to the same circuit, the total circuit current is ___ that of one load. -
-double
A particular load is rated to use 2.2 KW at 240 volts. This load is connected to a
✅✅
2-pole breaker in a panel using 12 AWG conductors. How much current will this
load draw? - -9.2
AC is an abbreviation for ___. - ✅✅-Alternating Current
